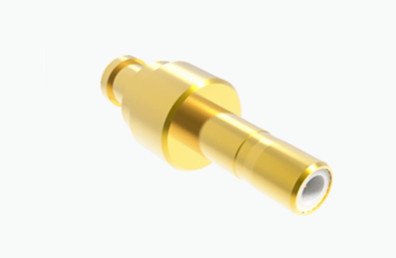

Gold Plated SSMB Male RF Connector for SFF-50-1 Cable
The SMB series connector is a type of miniature push-on insertion stop RF coaxial connector, characterized by its small volume, lightweight, ease of use, and high reliability. It is particularly suitable for use in radio equipment and high-frequency circuits of electronic devices. These connectors utilize a snap-on mating system to minimize installation time. They are available with various plating options, including nickel, gold, and tin-lead. The selective plating not only offers corrosion resistance but also enhances solderability.
Specification:
| Electrical Characteristics | ||
| Impedance | 50 Ohm | |
| Frequency Range | DC~4GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥5000MOhm | |
| Contact Resistance | Outer conductor | ≤6mOhm |
| Center conductor | ≤1.5 mOhm | |
| VSMR | ≤1.3 | |
| Insertion Loss | ≤0.30dB | |

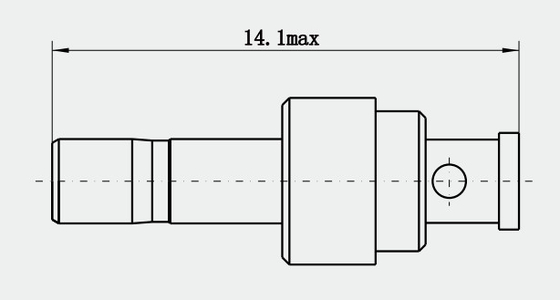

Product Detail
| Material & Mechanical Characteristics | |||
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated | |
| Resilience Contact | Beryllium bronze | Nickel Plated | |
| Shell / Housing | Brass,stainless steel | Nickel Plated | |
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| RoHS Compliant | Yes |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 0.6N max |
| Un-Coupling Force | 0.6 N max |
Environmental Specification:
| Operating Temperature | -65 to +165Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
1.Broad Working Frequency Bandwidth: SSMB connectors support frequencies up to 3 GHz, making them suitable for a wide range of RF applications.
2.Excellent Electrical Performance: SSMB connectors exhibit superior electrical properties within the frequency range from DC to 3 GHz, ensuring stable and reliable signal transmission.
3.Versatility: These connectors are commonly used in high-frequency circuits of radio equipment and electronic instruments for connecting coaxial cables, as well as in wireless base station equipment applications.
Application:
In summary, SSMB connectors play a critical role in high-frequency electronic devices and communication systems thanks to their compact design, lightweight nature, and good electrical performance. They are essential components for enabling efficient and reliable communication in both commercial and military sectors.
