SMP Male Stainless Steel Limited Detent RF Connector Enagement Depth 2.79mm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Frequency Range: | DC~40GHz | Impedance: | 50Ω |
|---|---|---|---|
| Glass: | 7052 7070 | Hermecity: | <1.01325 X 10E-08 Std.cc/s |
| Insulation Resistance: | ≥2000MΩ | Medium Pressure: | 500VRMS* |
| Rated Withstand Voltage: | 170VRMS* | VSWR: | ≤1.3 |
| Highlight: | 2.79mm RF Coaxial Connector,Stainless Steel SMP Male RF Connector,Stainless Steel Limited Detent RF Connector |
||

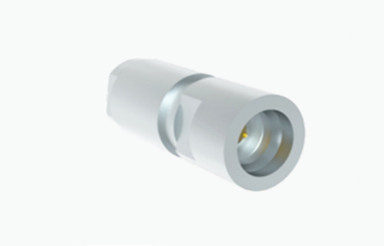

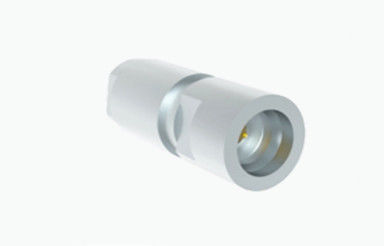

SMP Male Stainless Steel Limited Detent Enagement Depth 2.79 RF Connector
The SMP is a compact, push-on or snap-fit RF coaxial connector that boasts a small form factor, lightweight construction, impressive seismic performance, and a wide operational bandwidth. It can handle operational frequencies up to 30GHz (with our range of SMP connectors even capable of reaching 40GHz). The plugs offer three different interface options: full detent, limited detent, and smooth bore (which includes versions with breakaway features). Offering solutions for PCB mounting, cable mounting, and in-line adapters, the SMP provides interconnectivity for board-to-board, blind mating, and rack-and-panel applications while maintaining high package density. Its suitability for high-reliability and modular-intensive installations makes it a preferred choice in various critical applications.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

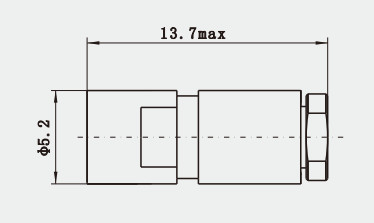

Detailed Drawing
Features and Benefits
| Gold plated |
| Sub-miniature |
| DC to 40GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
NOTE:
We have over 1,000 types of SMP hermetically sealed connector for choice, if the product you are using is not found, please contact us for full catologs. Custom dimensions is accepted.
Applications
In summary, SMP RF coaxial connectors are an essential component in modern electronic devices due to their compact size, high mounting density capability, broadband performance, and ease of use.
