| Connector: | SMP | Product Name: | SMP Male Hermetically Sealed Connector |
|---|---|---|---|
| Gender: | Male | Frequency Range: | DC~40GHz |
| Impedance: | 50Ω | Glass: | 7052 7070 |
| Hermecity: | ≤1.01325*10^-3 Pa.cm^3/s | Detent Type: | Limited Detent |
| High Light: | Hermetically Sealed Male RF Connector,Bondable Limited Detent RF Connector,Straight RF Male Connector |
||

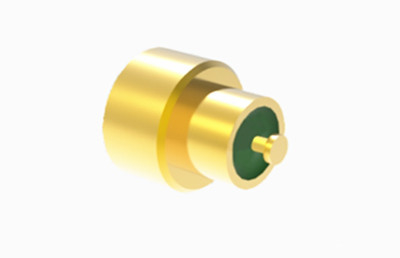

SMP Hermetically Sealed Male Straight Bondable Limited Detent RF Connector
SMP is a miniature push-on or snap coupling RF coaxial connector that is distinguished by its small size, lightweight design, excellent seismic performance, and broadband compatibility. It has an operating frequency range of up to 30GHz (our SMP connector can reach 40GHz) and offers three interface options: full detent, limited detent, and smooth bore (including with braking). The PCB mount, cable mount, and in-series adapters provide versatile interconnect solutions for various applications such as board-to-board connections, blind mate configurations, and rack-and-panel installations while maintaining a high level of package density. It is ideal for use in demanding environments that require high reliability and modularity.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

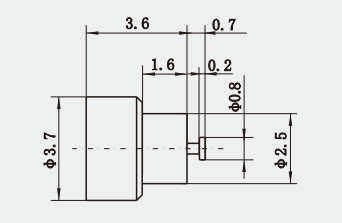

Detailed Drawing
Applications
The small size, high reliability, and broadband characteristics of SMP connectors make them a popular choice across a wide range of high-frequency applications where space is at a premium, and performance is critical. Their unique push-on or snap coupling design ensures ease of use and contributes to their growing adoption in today's technology landscape.
Features and Benefits
| Gold plated |
| Sub-miniature |
| DC to 40GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
