| Product Name: | SMP Female RF Coaxial Conector | Impedance: | 50Ohm |
|---|---|---|---|
| Certificate: | CE ROHS | Gender: | Female/Jack |
| Life Span: | 500Cycles | Body Style: | Right Angle |
| Material: | Brass | Mount Method: | Flange Mount |
| Frequency Range: | DC~40Ghz | ||
| High Light: | Brass Female SMP RF Connector,SMP Female Jack RF Coaxial Connector,Right Angle SMP RF Coaxial Connector |
||

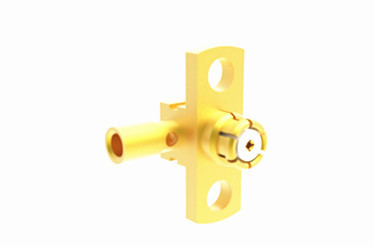

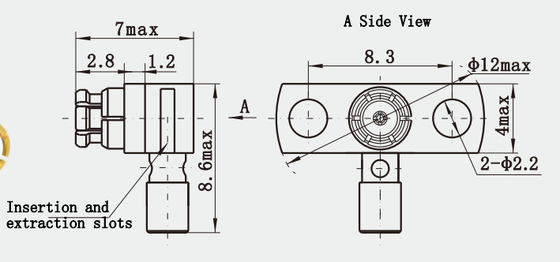

Gold Plated RF Coaxial SMP Female Jack Right Angle Flange Mount RF Connector
SMP RF Connector Introduction
SMP is a compact push-on or snap RF coaxial connector that provides a small form factor, light weight, superior seismic performance, and broad operating bandwidth. It has an operational frequency range of up to 30GHz (our SMP connectors can achieve 40GHz), and the plug offers three interface options: full detent, limited detent, and smooth bore (with braking capability).
Electrical Characteristics:
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Features and Benefits:
- DC to 40GHz
- Sub-miniature
- Push-on or snap coupling
- Compact size
- Cable mount versions for both flexible and semi-rigid cable Materials
- PCB & cable mount connectors
- Gold plated
- Normal type and hermetic, Flange mount & Thread-In Mount choice
- Male& Female, Straight & Right Angle choice
- Full detent, Limited detent and Smooth bore
Applications:
Communication systems: SMP connectors can be used in wireless communication base stations, satellite communications, radar systems, radio communications, and more.
Testing and measurement equipment: SMP connectors are suitable for use in RF test instruments, microwave device testing, signal generators, and other applications.
Automotive industry: SMP connectors can be used in automotive radars, in-car communications, navigation systems, and other automotive applications.
