| Product Name: | SMP Adapter Male To Male | Impedance: | 50Ohm |
|---|---|---|---|
| Body Material: | Brass | Color: | Gold Plated |
| Gender: | Male To Male | Type: | SMP Adapter |
| Other: | Hermetic | ||
| High Light: | Male To Male RF Adapter Connector,Hermetic SMP RF Adapter Connector |
||

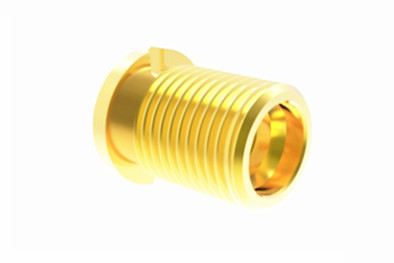

High-Performance Hermetic SMP Series: Male-to-Male RF Adapter Connector for Seamless Device Connection
SMP RF Connector Introduction
The SMP is a compact, push-on RF coaxial connector adapter that boasts. The SMP is a compact, push-on RF coaxial connector adapter that boasts a small form factor, lightweight design, excellent seismic performance, and broad operating bandwidth. It has an operating frequency range of up to 30GHz (our high-performance SMP connectors can reach 40GHz), and the plug features three interface options: full detent, limited detent, and smooth bore (including with braking). These various interface forms can accommodate the required axial or radial movement for blind mating in broadband to broadband couplers. The SMP is ideal for use in installations requiring high reliability and modular intensity.
| General Specification for SMP Connector Adapter | ||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~40GHz
|
|||
|
Rated Voltage
|
170VRMS(at sea level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS(at sea leavel)
|
|||
|
Insulation Resistance
|
≥2000MΩ
|
|||
|
|
Outer conductor
|
normal≤2.5mΩ, hermetically sealed ≤4mΩ
|
||
|
Center conductor
|
normal≤6mΩ, hermetically sealed ≤26mΩ
|
|||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector |
≤1.25
|
≤1.3 | ≤1.5 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.2 | ≤1.3 | ≤1.5 | |
| Center Conductor | Male |
Sn-P bronze
|
gold plated | |
| Female |
beryllium bronze
|
gold plated | ||
|
Elastic Contact
|
beryllium bronze
|
gold plated | ||
|
Shell and other Metal Parts
|
gold plated brass, passivated stainless steel
|
|||
|
Insulators
|
glass sintering/PTFE/PEI
|
|||
|
Leakage Rate for
hermetically sealed connector
|
1.01325×10-3 Pa·cm3 /s
|
|||
Unit: mm

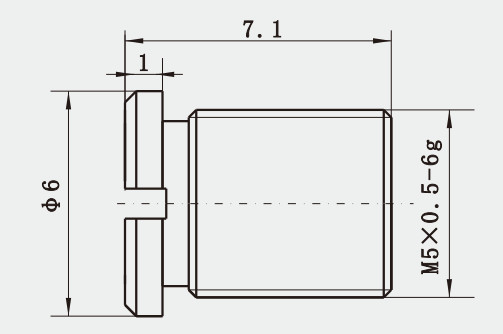

Outline Drawing of
High-Performance Hermetic SMP Series: Male-to-Male RF Adapter Connector for Seamless Device Connection
Application:
The SMP adapter is a new type of blind RF coaxial connector that provides an ideal solution for modular, intensive installations. This connector has an extremely wide operating frequency range, capable of working up to DC~40GHz. The SMP interface comes in two forms: one is an ultra-small interface with the same proportion as the MMCX connector, and the other is a conventional SMA interface. Both interfaces can operate at frequencies up to 40GHz, providing a push-in and snap-fit connection method.
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
