| Connector: | SMP | Product Name: | SMP Male Limited Detent Connector |
|---|---|---|---|
| Gender: | Male | Frequency Range: | DC~40GHz |
| Impedance: | 50Ω | Shell Material: | Kovar 4j29 |
| Glass: | 7052 7070 | Body: | Right Angle |
| High Light: | Limited Detent Right Angle RF Connector,Male PCB Mount SMP RF Connector,SMP Male Limited Detent Connector |
||

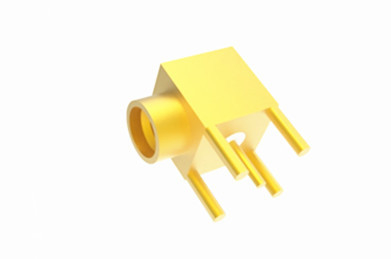

Male PCB Mount SMP RF Connector Limited Detent Right Angle Engagement Depth 2.79
SMP is a miniature push-on or snap coupling RF coaxial connector, which hasSMP is a miniature push-on or snap coupling RF coaxial connector, which has the characteristics of small size, light weight, excellent seismic performance, and wide working bandwidth. Its operating frequency can reach up to 30GHz (our SMP connector products can even reach 40GHz), and the plug has three interface forms: full detent, limited detent, and smooth bore (including with braking). PCB mount, cable mount, and in-series adapters provide an interconnect solution for board-to-board, blind mate, and rack-and-panel applications while maintaining package density. It is suitable for high reliability modular intensive installations.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

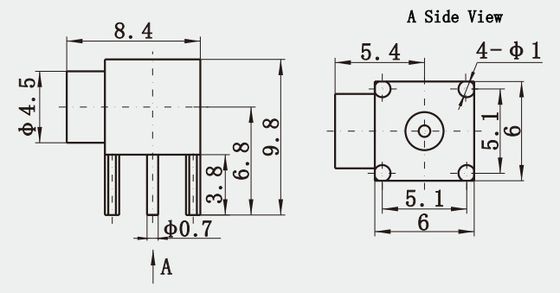

Detailed Drawing
Applications
The SMP connector is widely used in various applications, such as playing an important role in miniaturized high-frequency coaxial modules and high data rate applications, often used in antennas, broadband installations, testing and measurement, quantum computing and other fields. In summary, the SMP connector plays an important role in dense packaging of RF/microwave applications due to its unique features.
Features and Benefits
| Gold plated |
| Sub-miniature |
| DC to 40GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
