| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~11GHz |
| Model: | N-KFD19 | Gender: | Female |
| High Light: | Nickel Plated RF Coaxial Connector,Female Flange PCB Mount RF Connector,N Type PCB Mount RF Connector |
||

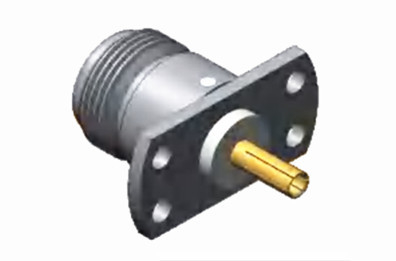

N-Type Connectors are threaded coupling coaxial connectors with good anti-vibration capability and electrical characteristics, and a typical frequency range of up to 11 GHz. Our frequency range can reach up to 18 GHz. They are suitable for various types of RF cables and are commonly used in aviation, aerospace, radar, microwave, digital communications, test and measurement instruments, etc.We offer customization for various N-type connectors and adapters to meet different customer requirements. Whether you need straight or right-angle, flange mount or bulkhead mount, we can provide the solution that fits your needs.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Gasket | Silicone Rubber | |
| Insulator | PTFE | |
| Durability | 500 Cycles | |

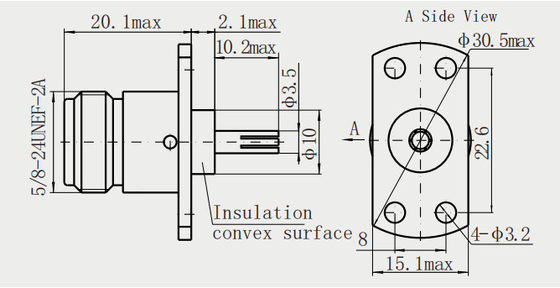

Detailed Drawing
Applications:
Aviation and Aerospace: N-type connectors are commonly used in avionics systems, such as aircraft communication, navigation, and surveillance systems.
Radar Systems: These connectors are used in radar systems to provide reliable and high-performance connections for transmitting and receiving RF signals.
Microwave and Wireless Communications: N-type connectors are employed in microwave systems, such as satellite communication, cellular base stations, and wireless network equipment.
Test and Measurement Instruments: These connectors are used in test equipment, oscilloscopes, spectrum analyzers, and other measurement instruments to ensure accurate and stable signal transmission.
Medical Devices: N-type connectors are utilized in medical imaging equipment, such as MRI machines and X-ray devices, to facilitate the connection of RF cables.
Consumer Electronics: These connectors can be found in various consumer electronic devices, including televisions, radios, and audio systems, for connecting RF cables and antennas.
