Product Details:
Payment & Shipping Terms:
|
| Product Name: | BNC RF Conector | Plating: | Nickel Plated |
|---|---|---|---|
| Durability: | 500 Cycles | Contact Material: | Brass, BeCu |
| Material: | Brass | Design Standard:: | IEC 60169-8 |
| Type: | Straight | Gender: | Female |
| High Light: | Waterproof Crimp Type RF Connector,Bulkhead Crimp Type Connector,BNC Crimp Type Connector |
||

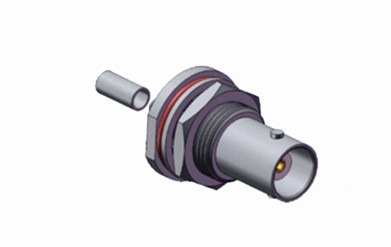

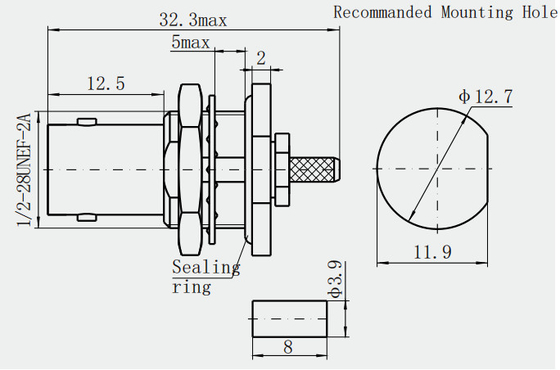

Ensure Reliable RF Connections in Wet Environments with BNC Waterproof Female Bulkhead Crimp Type Connector
The BNC connector, also known as the Bayonet NeillThe BNC connector, also known as the Bayonet Neill-Concelman connector, is a small, fast connect/disconnect RF connector used for coaxial cables. It features two bayonet lugs on the female connector that can be mated with just a quarter turn of the coupling nut. BNC connectors are ideal for terminating miniature-to-subminiature coaxial cables such as RG-58, 59, to RG-179, RG-316. They are commonly used in radio, television, and other radio-frequency electronic equipment, test instruments, video signals, and were once a popular connector for 10BASE2 computer networks. BNC connectors are designed to match the characteristic impedance of cables at either 50Ohms or 75Ohms. They work well in lower microwave frequency applications such as monitors, LAN, telecommunication devices, and test equipment. The BNC connector has a bayonet structure coupling for mating and was developed according to MIL-C-39012/16-24l. It can be interchanged with the same-type connectors from abroad, enabling rapid engagement and disengagement. It is used to connect coaxial cables in radio equipment and instruments.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ohm | |
| Frequency Range | DC~4GHz | |
| Rated Voltage | 500 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 1500 VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥5000MΩ | |
| Contact Resistance | Outer conductor | ≤2.0mOhm |
| Center conductor | ≤0.5mOhm | |
| VSMR | ≤1.3 | |
Product Detail:
| Material & Mechanical Characteristics | |||
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated | |
| Resilience Contact | Beryllium bronze | Nickel Plated | |
| Shell / Housing | Brass,stainless steel | Nickel Plated | |
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| RoHS Compliant | Yes |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 0.58N max |
| Un-Coupling Force | 0.6 N max |
Environmental Specification:
| Operating Temperature | -45 to +155Deg C |
| IP Rating ( Mated ) | IP67 |
Features:
Affordable and high-quality.
Wideband performance with low reflection from DC to 4GHz.
Impedance of 50 Ohm.
Quick and easy snap-on mating for fast installation.
Compatible with a variety of miniature RG flexible semi-rigid coaxial cables.
BNC connectors are available in straight, right angle, bulkhead, 2 hole panel, 4 hole panel, or mountless versions.
Can be attached to industry standard cables and used as a printed circuit board device.
Ensures consistent performance.
Application:
* Computer/LANs
* Radio/CCTV
* Broadband
* Instrumentation
* Antennas
* Telecom
* Computers
* High-speed cable modems
* Broadcast
* Video systems
* Automotive
* Telecommunications
* Wireless industries
* Measurement equipment
* Base stations
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
