Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMP Male Limited Detent Hermetically Sealed Connector | Frequency Range: | DC~40GHz |
|---|---|---|---|
| Impedance: | 50Ω | Connector Series: | SMP |
| Gender: | Male | Shell Material: | Kovar 4j29 |
| Glass: | 7052 7070 | Hermeticity: | 1.01325×10-3Pa·cm3/s |
| High Light: | Hermetic Seal Male RF Connector,PCB Mount RF Connector,DC 40GHz RF Coaxial Connector |
||

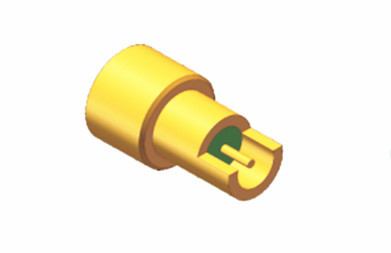

Experience Improved Signal Integrity and Reliability with Our Hermetic Seal Male PCB Mount Limited Detent RF Connector
SMP is a compact, push-in or snap-in RF coaxial connector that boastSMP is a compact, push-in or snap-in RF coaxial connector that boasts a small size, lightweight design, excellent shock resistance, and wide frequency band operation. Its operational frequency can reach up to 30GHz (with our SMP connector products capable of extending up to 40GHz). The plug features three interface forms - full card position, limit card position, and light hole (including belt brake). Offering PCB mount, cable mount, and serial adapters, it provides interconnect solutions for board-to-board, blind-mate, and rack and panel applications while maintaining high packaging density. This makes it ideal for installations requiring high reliability and modular intensiveness.
Specification of SMP RF Connector
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Features and Benefits of SMP RF Connector
| Gold plated |
| Sub-miniature |
| DC to 40 GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |

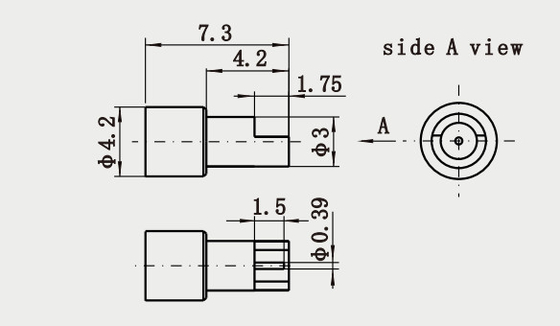

Detailed Drawing of SMP RF Connector(mm):
Applications of SMP RF Connectors:
High-density installation: SMP connectors are designed1. High-density installation: SMP connectors are designed to be compact, making them suitable for high-density installations and helping to improve the overall performance and reliability of devices.
Wide frequency range: SMP connectors have a wide operating frequency range, up to 40GHz, making them suitable for various high-frequency signal transmission scenarios.
Easy plugging and unplugging: With their push-in or snap-in design, SMP connectors offer convenient and quick plugging and unplugging, reducing the risk of incorrect insertion.
Shock and vibration resistance: SMP connectors exhibit excellent shock and vibration resistance, making them suitable for harsh working environments such as aerospace, military, and other applications.
Multiple interface forms: SMP connectors provide multiple interface forms, including full card position, limit card position, and light hole (including belt brake), to meet the connection requirements of different devices.
Versatile applications: SMP connectors can be widely used in various scenarios such as board-to-board, blind-mate, rack, and panel applications, providing reliable interconnection solutions while maintaining high packaging density.
