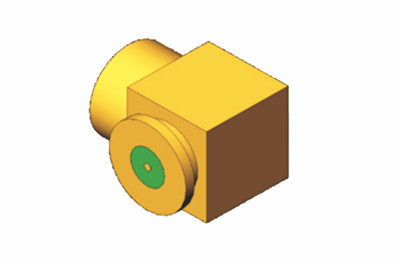

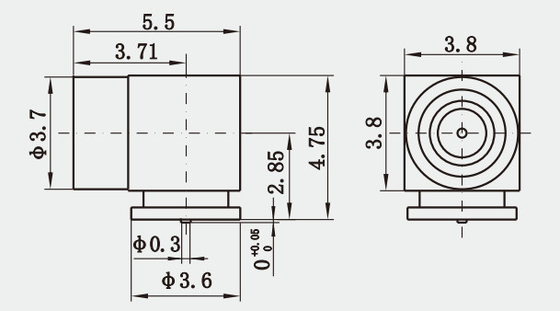

Brass PCB Mount Full Detent RF Connector SSMP Male Right Angle

Large Image : Brass PCB Mount Full Detent RF Connector SSMP Male Right Angle Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	CE ROHS
Model Number:	SSMP-JWHD4

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	1,000,000pcs per month

Contact Now

Detailed Product Description

Interface Depth:	2.11mm	Rated Voltage:	85VRMS*
Material:	Brass	Plating:	Gold Plated
Impedance:	50Ω	Frequency Range:	DC~50GHz
Interface:	Full Detent	Lifespan:	500Cycles
Highlight:	Full Detent RF Connector , PCB Mount SSMP RF Connector , Gold Plated Brass RF Cable Connector

Premium SSMP Male Right Angle PCB Mount Full Detent RF Connector: Superior Performance and Reliability

SSMPis a sub-miniature push-on RF coaxial connector, which has the characters of small size(compared with SMP), light weight,

wide working broadband, etc. Apply for the couple usage of board to board interconnect, for the situation of modular intensive

mounting, and the plug has two interface form -full detent and smooth bore.

Features

* Frequency Range: DC - 50GHz
* 50Ω Impedance; Blindmateable configuration
* Ability to withstand Radial/Axial Misalignment
* Board-mount, Field-replaceable, Bullets, Hermetic and Cable Connector configurations
* Custom Connectors Available

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~60GHz
Rated Voltage	85VRMS*
Dielectrics Voltage-resistance	250VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor		Normal≤2mΩ, Sealing≤5mΩ
	Center conductor		Normal≤6mΩ, Sealing≤25mΩ
	DC~18GHz	18~26.5GHz		26.5~40GHz	40~50GHz
VSWR	≤1.25	≤1.3		≤1.35	≤1.4
Material & Mechanical Characteristics
Center Conductor	Male		Sn-P Bronze/Kovar, Gold plated
	Female		Beryllium bronze, Gold plated
Elastic Contact	Beryllium bronze Gold plated
Shell and other Metal Parts	Brass/Kovar Gold plated Stainless steel Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	≤1.01325×10-3Pa·cm3/s

Brass PCB Mount Full Detent RF Connector SSMP Male Right Angle 0

Application:

1. Wide Range of RF Applications: SMPM connectors are suitable for various RF applications, including wireless communications, radar systems, aerospace, medical equipment, and more.

2. High-Performance Transmission: SMPM connectors offer excellent electrical performance, enabling high-speed and low-loss signal transmission to meet the demands of high-frequency applications.

3. Compact Design: With a PCB mounting style, SMPM connectors occupy minimal space, making them ideal for integration into compact electronic devices.

4. Excellent Mechanical Stability: Featuring a full-toothed slot design, SMPM connectors provide stable connections and high mechanical strength, making them suitable for harsh environmental conditions.

5. Easy Installation and Maintenance: SMPM connectors utilize threaded locking mechanisms for simple installation and reusability, reducing maintenance costs.

6. Reliable Sealing Performance: SMPM connectors employ high-quality sealing materials to ensure excellent sealing performance in harsh environments such as high pressure, high temperature, and chemical corrosion.
