| Connector: | SMP | Product Name: | SMP Male Limited Detent Hermetically Sealed Connector |
|---|---|---|---|
| Gender: | Male | Frequency Range: | DC~40GHz |
| Impedance: | 50Ω | Shell Material: | Kovar 4j29 |
| Glass: | 7052 7070 | Hermecity: | ≤1.01325*10^-3 Pa.cm^3/s |
| High Light: | Male RF Connector Limited Detent,Male PCB Mount RF Connector,SMP Series RF Coaxial Connector |
||

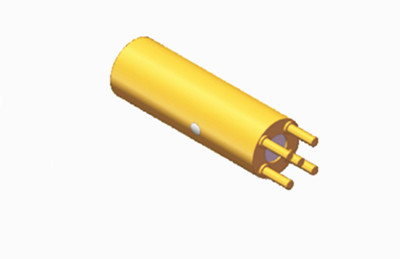

SMP Series Male PCB Mount RF Connector Limited Detent Connector for Ultimate Performance
The SMP Series Male PCB Mount RF Connector is a compact push-on or snap coupling RF coaxial connector, characterized by its small size, lightweight design, excellent seismic performance, and broad working bandwidth. It operates up to 30GHz(our SMP connector products can reach 40GHz) and offers three interface forms - full detent, limited detent, and smooth bore (including with braking). Available in PCB mount, cable mount, and in-series adaptors, it provides an interconnect solution for board-to-board, blind mate, and rack-and-panel applications while maintaining package density. Ideal for high-reliability modular intensive installations.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

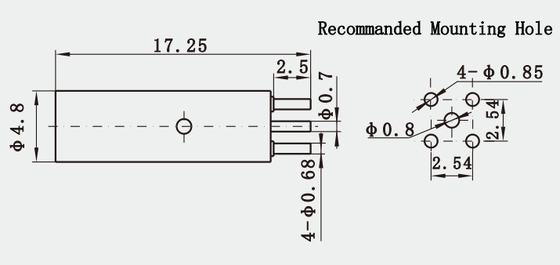

Detailed Drawing
Applications
- Antennas
- Broadband
-Telecommunications
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
Features and Benefits
| Gold plated |
| Sub-miniature |
| DC to 40GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
