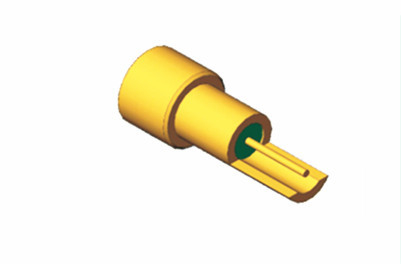

Hermetically Sealed SMP Male RF Connector Plug For Ultimate Performance And Reliability

Large Image : Hermetically Sealed SMP Male RF Connector Plug For Ultimate Performance And Reliability Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ROHS ISO-9001-2015
Model Number:	SMP(M)-JHD164

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within in 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	SMP RF Coaxial Conector	Impedance:	50Ω
Certificate:	ROHS ISO-9001-2015	Gender:	Male/Plug
Body Style:	Straight	Plating:	Gold
Material:	Brass	Mount Method:	PCB Mount
Lifetime:	500Cycles
High Light:	SMP Male RF Connector Plug , Hermetically Sealed RF Connector Plug , Brass Straight SMP RF Connector

High-Quality Hermetically Sealed SMP Male RF Connector Plug for Ultimate Performance and Reliability

SMP RF Connector Introduction

The SMP interface is a compact connector, similar in size to The SMP interface is a compact connector, similar in size to MMCX connectors, but with a frequency range of DC to 40GHz. The SMP interconnect series uses floating female-to-female adapters (commonly known as bullets) to stack boards with SMP male PCB connectors. This robust design and ability to handle radial and axial misalignment enable blind interconnection solutions. It is commonly employed in miniaturized high-frequency coaxial modules.

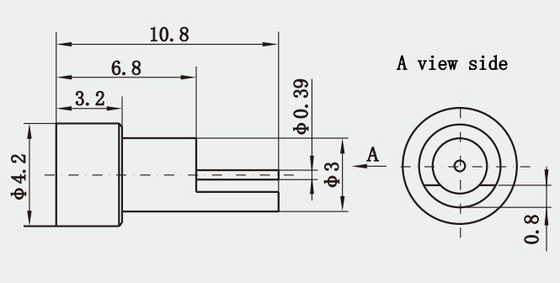

Hermetically Sealed SMP Male RF Connector Plug For Ultimate Performance And Reliability 0

Features and Benefits

Gold plated & passivated stainless steel
Industry standard per MIL-STD-348
Frequency Range: DC - 40GHz
Push-on or snap coupling
Male and Female, Straight and Right Angle choice
Normal type and hermetic seals Flange mount & Thread-In Mount choice
The plug has three interface form-full detent, limited detent and smooth bore(including with braking).
Custom connectors available

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor	Normal≤2.5mΩ, Sealing≤4mΩ
	Center conductor	Normal≤6mΩ, Sealing≤26mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Sn-P Bronze, gold plated
	Female	Beryllium bronze, gold plated
Elastic Contact	Beryllium bronze	Gold plated
Shell and other Metal Parts	Brass Stainless steel	Gold plated Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	1.01325×10-3Pa·cm3/s
