| Connector: | SMP | Product Name: | SMP Male Hermetically Sealed Connector |
|---|---|---|---|
| Gender: | Male | Frequency Range: | DC~40GHz |
| Impedance: | 50Ω | Glass: | 7052 7070 |
| Hermecity: | ≤1.01325*10^-3 Pa.cm^3/s | Detent Type: | Limited Detent/smooth Bore |
| High Light: | Right Angle PCB Mount RF Connector,SMP Hermetically Sealed RF Connector,RF Coaxial Connector 40GHz |
||

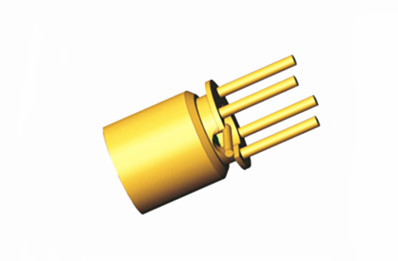

Enhanced Connectivity with SMP Hermetically Sealed Male Right Angle PCB Mount RF Connector
The SMP is a miniature push-on or snap coupling RF coaxial connector, characterized by its compact size, lightweight design, superior seismic performance, and broadband compatibility. With an operating frequency range of up to 30GHz (our SMP connector can reach 40GHz), the plug offers three interface options: full detent, limited detent, and smooth bore (including with braking). The PCB mount, cable mount, and in-series adapters provide versatile interconnect solutions for various applications such as board-to-board connections, blind mate configurations, and rack-and-panel installations while maintaining a high level of package density. Ideal for use in demanding environments requiring high reliability and modularity.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

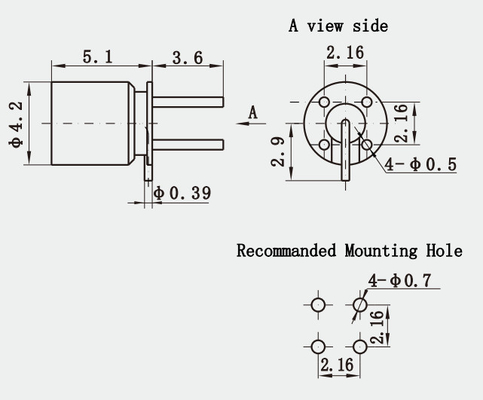

Detailed Drawing
Applications
1,Compliant with standards set by the International Electrotechnical Commission (IEC) and the Institute of Electrical and Electronics Engineers (IEEE).
2,Wide operating frequency range, capable of working up to DC~40GHz.
3,Three interface forms are available based on different connection retention forces: smooth bore, limited detent, and full detent, catering to various application requirements.
4,Offers user-friendly design, allowing installers to simply push these plug-in connectors together for connection and easily pull them apart when needed.
5,making it suitable for modular, densely packed applications.
Features and Benefits
| Gold plated |
| Sub-miniature |
| DC to 40GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
