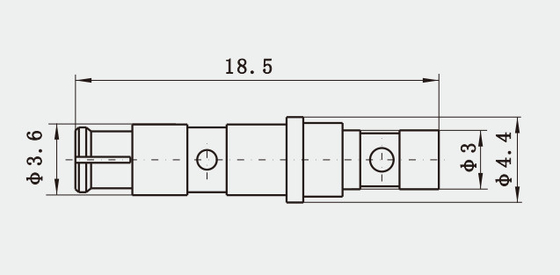

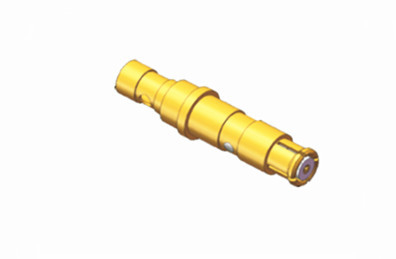

Premium Optimize Signal Strength SMPA Female RF Cable Connector For CXN3506 Cable

Large Image : Premium Optimize Signal Strength SMPA Female RF Cable Connector For CXN3506 Cable Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	CE ROHS ISO-9001-2015
Model Number:	SMPA-K506

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within in 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	SMP RF Adapter	Impedance:	50Ω
Certificate:	CE ROHS ISO-9001-2015	Durability:	500 Cycles
Gender:	Female	Body Style:	Straight
Material:	Brass	Plating:	Gold Plating
High Light:	RF CXN3506 Cable Connector , SMPA Female RF Cable Connector , Straight Brass RF Connector

Premium Optimize Signal Strength SMPA Female RF Cable Connector for CXN3506 Cable

SMP RF Connector Introduction

The SMP interface is a compact connector similar in size to MMCX connectors, but it operates over a frequency range of DC to 40 Ghz. The SMP interconnect series utilizes floating female-to-female adapters (commonly known as bullets) for stacking boards with SMP male PCB connectors. This robust design and ability to tolerate radial and axial misalignment enable blind interconnection solutions. It is frequently employed in miniaturized high-frequency coaxial modules.

Features and Benefits

Ultra-small design for maximum performance in compact spaces and reduced system weight.
Capable of push-on or snap-in coupling, providing an audible and positive tactile click to ensure electrical connection completion.
Available in three interface forms based on different connection retention forces: optical, semi-snap, and full snap, to meet different application requirements.
Suitable for cable mounting versions for flexible and semi-rigid cables.

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor	Normal≤2.5mΩ, Sealing≤4mΩ
	Center conductor	Normal≤6mΩ, Sealing≤26mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Sn-P Bronze, gold plated
	Female	Beryllium bronze, gold plated
Elastic Contact	Beryllium bronze	Gold plated
Shell and other Metal Parts	Brass Stainless steel	Gold plated Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	1.01325×10-3Pa·cm3/s
