| Connector: | SMP | Product Name: | SMP Male Hermetically Sealed Connector |
|---|---|---|---|
| Gender: | Male | Frequency Range: | DC~40GHz |
| Impedance: | 50Ω | Interface Form: | Limited Detent/Smooth Bore |
| Glass: | 7052 7070 | Hermecity: | ≤1.01325*10^-3 Pa.cm^3/s |
| High Light: | PCB Mount RF Plug,SMP Hermetically Sealed Male RF Plug,40GHz SMP RF Connector |
||

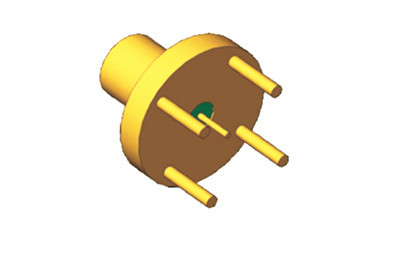

Premium SMP Hermetically Sealed Male RF Plug for PCB Mount: Superior Connectivity and Reliability
SMP is a compact push-on or snap-fit RF coaxial connector that offers small size, light weight, superior seismic performance, and broad operating bandwidth. With an operating frequency range of up to 30GHz (our SMP connector can even reach 40GHz), the plug features three interface options: full detent, limited detent, and smooth bore (with braking). The PCB mount, cable mount, and in-series adapters provide reliable interconnection solutions for board-to-board, blind mate, and rack-and-panel applications while maintaining high package density. Ideal for use in demanding, high reliability, and modularly intensive installations.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

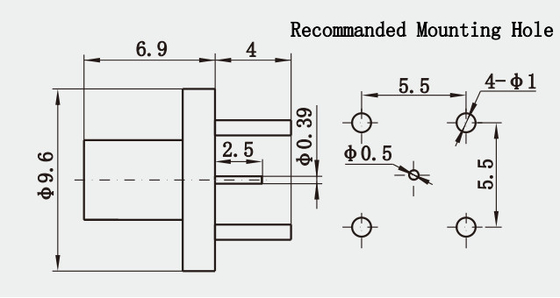

Detailed Drawing
Applications
High-density connections: SMP connectors are characterized by their small size and lightweight, making them suitable for high-density installations such as board-to-board, rack-and-panel, and other applications.
Wide frequency range: The operating frequency range of SMP connectors can reach up to 30GHz or even 40GHz, making them suitable for a variety of high-frequency applications.
Superior seismic performance: SMP connectors have excellent seismic performance, providing stable connections in vibration and shock environments.
Multiple interface options: SMP plugs offer three interface forms - full detent, limited detent, and smooth bore (including with braking), allowing users to choose the most suitable interface form based on their requirements.
High reliability: Made from high-quality materials and undergoing strict quality control and testing, SMP connectors ensure reliable operation in demanding applications requiring high reliability.
Features and Benefits
| Gold plated |
| Sub-miniature |
| DC to 40 GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
