| Product Name: | SMP Female Connector | Frequency Range: | DC~40GHz |
|---|---|---|---|
| Impedance: | 50Ω | Connector Series: | SMP |
| Gender: | Female | Shell Material: | Kovar 4j29 |
| Glass: | 7052 7070 | Hermecity: | ≤1.01325*10-3 Pa.cm3/s |
| High Light: | Long Microstrip Socket RF Connector,2 Hole Flange RF Connector,RF Coaxial Female Connector |
||

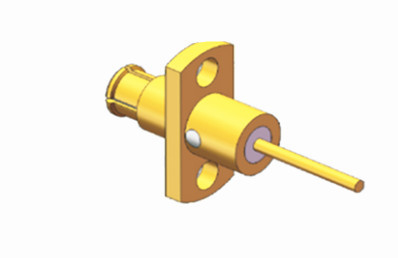

Upgrade Your RF Connectivity with Our SMP Female 2-Hole Flange and Long Microstrip Socket - Precision, Reliability
SMP is a compact push-on or snap coupling RF coaxial connector that features a small size, lightweight design, excellent seismic performance, and broad working bandwidth. Its operating frequency can reach up to 30GHz (our SMP connector products can even achieve 40GHz), and the plug offers three interface forms: full detent, limited detent, and smooth bore (including with braking). With PCB mount, cable mount, and in-series adaptors, SMP provides an interconnect solution for board-to-board, blind mate, and rack-and-panel applications while maintaining package density. It is suitable for high-reliability modular intensive installations.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

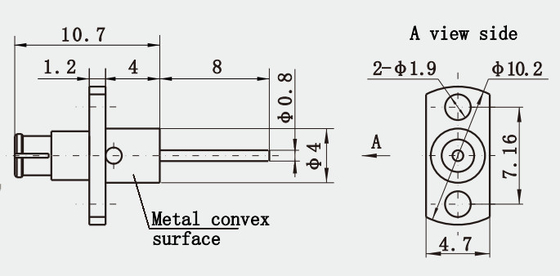

Detailed Drawing
Features and Benefits
| Gold plated |
| Sub-miniature |
| DC to 40 GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
Applications
SMP connectors have a wide range of applications in antennas, broadSMP connectors have a wide range of applications in antennas, broadband equipment installation, testing and measurement, quantum computing, and other fields. Due to its unique characteristics, SMP connectors have become an important tool for promoting dense packaging in RF/microwave applications.
