Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMP RF Coaxial Conector | Impedance: | 50Ω |
|---|---|---|---|
| Certificate: | CE ROHS ISO-9001-2015 | Durability: | 500 Cycles |
| Gender: | Male | Body Style: | Right Angle |
| Material: | Brass | Mount Method: | Surface Mount |
| Plating: | Gold Plating | ||
| High Light: | Smooth Bore Right Angle RF Connector,Right Angle SMP Male RF Connector,PCB Mount SMP RF Plug |
||

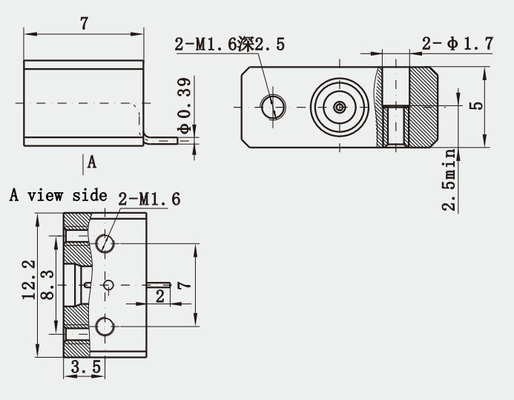

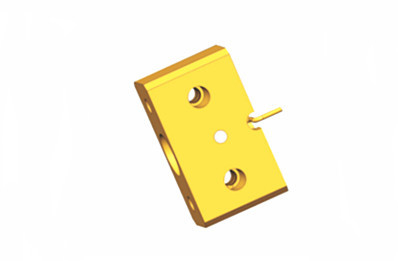

Superior Performance SMP Male Smooth Bore Right Angle RF Connector for PCB Mount
The SMP interface is a compact connector that matches the size of MMCX connectors, but provides a frequency range from DC to 40Ghz. The SMP interconnect series employs floating female-to-female adapters (commonly referred to as bullets) for stacking boards with SMP male PCB connectors. This resilient structure and capacity to tolerate radial and axial misalignment enable blind interconnection solutions. It is commonly used in miniaturized high-frequency coaxial modules.
1,High Frequency Range: The SMP interface offers a frequency1. High Frequency Range: The SMP interface offers a frequency range of DC to 40Ghz, making it suitable for high-frequency applications.
2,Compact Size: The SMP connector has the same scale as MMCX connectors, making it a great choice for miniaturized devices.
3,Blind Interconnection: The floating female-to-female adapters used in the SMP interconnect series enable blind interconnection solutions, which is particularly useful in situations where precise alignment is difficult.
4,Radial and Axial Misalignment Tolerance: The SMP interface is designed to withstand radial and axial misalignment, ensuring reliable connectivity even in challenging environments.
5,Durable Structure: The SMP male PCB connectors are built to last, making them ideal for use in rugged applications.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Applications
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
