| Product Name: | SMP Male Bulkhead Mount Connector | Mount Method: | Bulkhead |
|---|---|---|---|
| Impedance: | 50Ω | Gender: | Male |
| Frequency Range: | DC~18GHz | Shell Material: | Brass |
| High Light: | Brass Bulkhead RF Connector,SMP Male RF Plug |
||

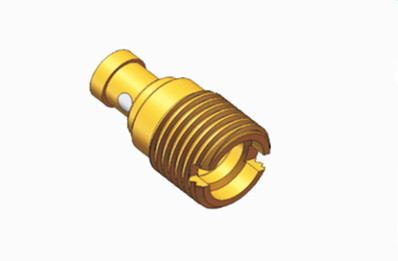

Experience Enhanced Connectivity with SMP's Male Brass Bulkhead RF Connector: Limited Detent and Available in Bulk
SMP is a type of small push-in or snap RF coaxial connector that features a compact size, lightweight design, excellent seismic performance, and a wide operating frequency band. It can operate up to 30GHz (with our SMP connector products reaching 40GHz) and comes in three interface options - full card, limit card, and optical hole (including with brake). PCB mounting, cable mounting, and series adapters provide versatile interconnection solutions for board-to-board, blind plug, and rack and panel applications while maintaining high package density. Ideal for use in demanding environments requiring high reliability and modularity.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

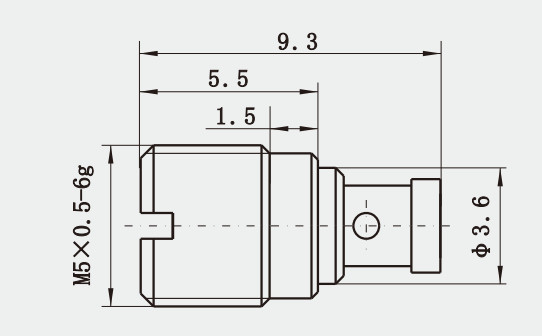

Detailed Drawing
Applications
- antenna
- broadband
-Telecom
- Instrumentation
- Phased array antenna
- Board to board interconnection
Features:
*High Performance: SMP RF connectors are designed to provide excellent performance in a wide range of frequencies, making them suitable for a variety of applications.
*Compact Design: These connectors are small and lightweight, making them ideal for use in space-constrained environments.
*Robust Construction: SMP RF connectors are built to withstand harsh conditions and rugged handling, ensuring reliable connectivity even in challenging environments.
