Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMP Female Limited Detent Hermetically Sealed Connector | Frequency Range: | DC~18GHz |
|---|---|---|---|
| Impedance: | 50Ω | Connector Series: | SMP |
| Gender: | Female | Shell Material: | Brass |
| Glass: | 7052 7070 | Rated Voltage: | 170VRMS* |
| High Light: | SMP RF Connector With Microstrip,SMP Female Bulkhead RF Connector |
||

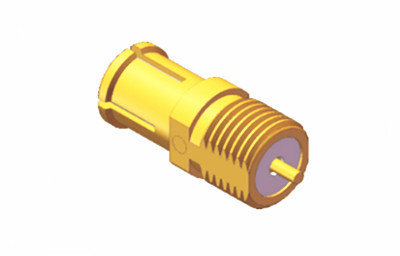

High-Quality SMP Female Bulkhead RF Connector with Microstrip for Enhanced Performance and Reliability
The SMP Female Bulkhead RF Connector with Microstrip is a compact push-on or snap coupling RF coaxial connector, characterized by its small size, lightweight, excellent seismic performance, and broadband capabilities. It operates up to 40GHz (with our SMP connector product reaching 30GHz), and the plug features three interface forms: full detent, limited detent, and smooth bore (including with braking). The PCB mount, cable mount, and in-series adapters provide an interconnect solution for board-to-board, blind mate, and rack-and-panel applications while maintaining package density. It is suitable for high-reliability modular intensive installations.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

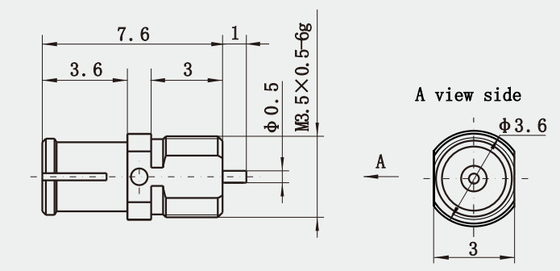

Detailed Drawing
Features and Benefits
| Gold plated |
| Sub-miniature |
| DC to 40GHz |
| Compact size |
| Push-on or snap coupling |
| Full detent, Limited detent and Smooth bore |
| PCB & cable mount connector |
| Male and Female, Straight and Right Angle choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
Applications
- Antennas
- Broadband
- Aerospace
- Telecommunications
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
