| Body Material: | Brass | Impedance: | 50Ohm |
|---|---|---|---|
| Color: | Gold Plated | Body Style: | Straight |
| Type: | SMA Female To ASMP Female RF Adapter | Frequency Range: | DC-18GHz |
| Durability: | 500 Cycles | Connector Body Material: | Brass |
| High Light: | Seamless RF Integration SMP RF Connector,K-Type To ASMP RF Connector |
||

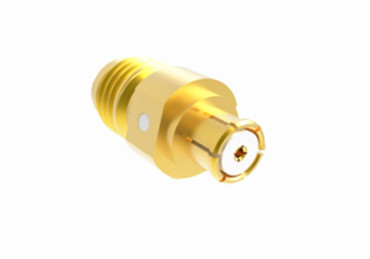

Connector K-type Female to ASMP Female RF Connector for Seamless RF Integration
ASMP is a novel blind mate RF connector that shares the same structure and usage method as SMP. Its outline dimension is approximately 22% larger than SMP, resulting in almost 30%~50% higher transmission power. ASMP is well-suited for board-to-board connections, modular intensive mounting, and high power requirements. The male SMP connector comes in two interface forms - full detent and smooth bore, while the female connector only has one interface, which can be mated with any kind of male connector.
The K-type, also referred to as the 2.92mm connector, is a widely utilized millimeter wave connector. Its operational frequency can reach up to 40 GHz. Through its air interface, it can be interchanged with both the SMA series and the 3.5mm connectors. This connector boasts the benefits of being compact, lightweight, capable of high-frequency usage, and providing reliable connections.
Features:
High-performance interface: It does not produce high-order modes at 50GHz, featuring a high-performance interface.
Strong compatibility: It is compatible with the widely used SMA connector.
Durable and damage-resistant: It has good durability and repeatability, as well as excellent damage resistance.
Superior performance: Its performance should surpass that of the currently widely used SMA connector and APC3.5 connector.

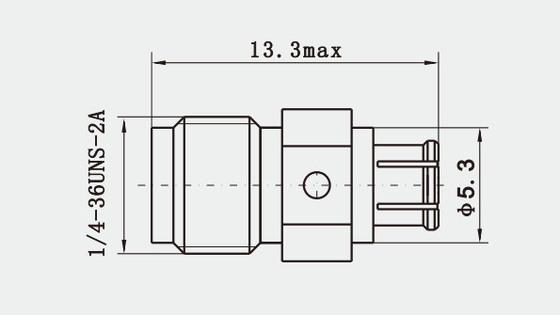

Outline Drawing of
Connector K-type Female to ASMP Female RF Connector for Seamless RF Integration
Install Introduction:
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
