Product Details:
Payment & Shipping Terms:
|
| Body Material: | Brass | Impedance: | 50Ohm |
|---|---|---|---|
| Color: | Gold Plated | Body Style: | Straight |
| Type: | SMP Female To Female RF Adapter | Frequency Range: | DC-26.5GHz, DC-24GHz(hermetic Product) |
| High Light: | ASMP Female To Female RF Adapter,Seamless RF Adapter,Brass RF Connector Adapter |
||

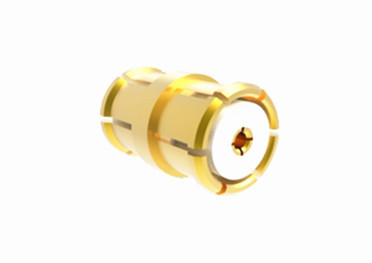

RF Connectivity with the ASMP Female to Female RF Adapter - The Ultimate Solution for Seamless Connections
ASMP is a novel blind mate RF connector that shares the same structure and usage method as SMP. Its outline dimension is approximately 22% larger than SMP, resulting in almost 30%~50% higher transmission power. ASMP is well-suited for board-to-board connections, modular intensive mounting, and high power requirements. The male SMP connector comes in two interface forms - full detent and smooth bore, while the female connector only has one interface, which can be mated with any kind of male connector.
Features:
The ASMP connector has the same structure and usage method as the SMP connector. Its outline dimension is approximately 22% larger than that of the SMP connector, allowing for more contact points and higher transmission power. The increased outline dimension results in a 30%~50% improvement in transmission power, making it ideal for high-power applications. The ASMP connector is well-suited for board-to-board connections, modular intensive mounting, and high power requirements. It meets the specific needs of these applications. Male ASMP connectors come in two interface forms - full detent and smooth bore, while female ASMP connectors have only one interface form that can be mated with any kind of male connector. This design provides greater flexibility and compatibility.

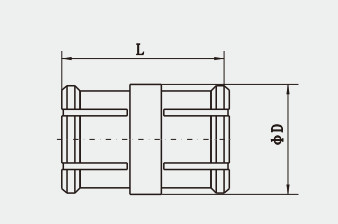

Outline Drawing of
RF Connectivity with the ASMP Female to Female RF Adapter - The Ultimate Solution for Seamless Connections
Install Introduction:
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. Microwave Rotary Joints
8. ODM Products
