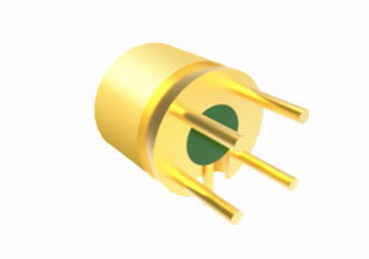

Brass ASMP Male Straight Full Detent RF Connector Plug With Microstrip

Experience Unparalleled RF Connectivity with ASMP Male Straight Full Detent RF Connector Plug with Microstrip

ASMP is a new type of blind mate RF connector that shares the same structure and usage method as SMP. Its outline dimension is approximately 22% larger than SMP, resulting in almost 30%~50% higher transmitted power. ASMP is well-suited for board-to-board connections, modular intensive mounting, and high power requirements. The male SMP connector comes in two interface forms - full detent and smooth bore, while the female connector only has one interface, which can be mated with any kind of male connector.

Features:

1. Same structure as SMP: The ASMP connector adopts the same structure and usage method as the SMP connector.

2. Larger outline dimension: The outline dimension of the ASMP connector is approximately 22% larger than that of the SMP connector, allowing for more contact points and higher transmission power.

3. Higher transmission power: Due to the increased outline dimension, the transmission power of the ASMP connector can be improved by 30%~50%. This makes it particularly suitable for applications requiring high power.

4. Suitable for board-to-board connections and modular intensive mounting: The ASMP connector is well-suited for board-to-board connections, modular intensive mounting, and high power requirements. Its design meets the specific needs of these applications.

5. Multiple interface forms for male connectors: The male connectors (male ASMP) in the ASMP series come in two interface forms - full detent and smooth bore. On the other hand, the female connectors (female ASMP) have only one interface form, which can be mated with any kind of male connector. This design provides greater flexibility and compatibility.

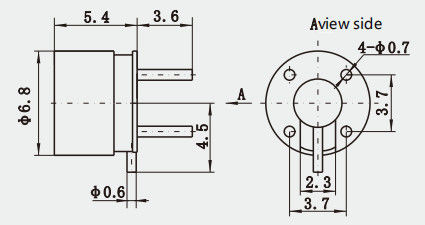

Outline Drawing of
Experience Unparalleled RF Connectivity with ASMP Male Straight Full Detent RF Connector Plug with Microstrip


Install Introduction:



NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
