Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMP RF Coaxial Conector | Certificate: | CE ROHS ISO-9001-2015 |
|---|---|---|---|
| Life Span: | 500 Cycles | Gender: | Male/Plug |
| Body Style: | Straight/Right Angle | Material: | Brass |
| Mount Method: | Flange Mount | Plating: | Gold Plating |
| Imdepence: | 50Ohm | ||
| High Light: | Long Insulation Convex Surface RF Connector,2 Hole SMP Male Connector,50Ohm Plug SMP RF Connector |
||

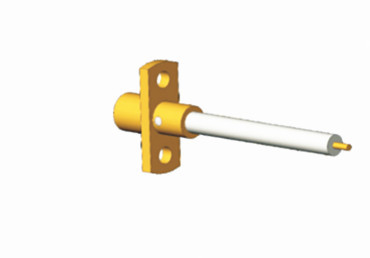

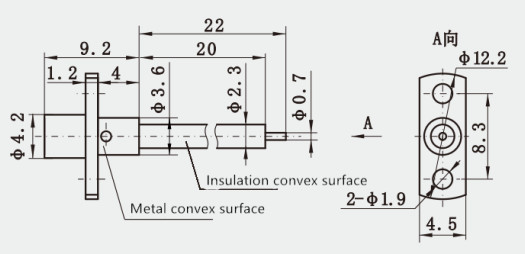

SMP Male 2-hole Flange Mount with Long Insulation Convex Surface 50Ohm Plug
The SMP interface is a compact connector that matches the size of MMCX connectors, but supports a frequency range from DC to 40 GHz. The SMP interconnect series employs floating female-to-female adapters (commonly referred to as bullets) for stacking boards with SMP male PCB connectors. This robust design and resistance to radial and axial misalignment enable blind interconnection solutions. It is frequently used in miniaturized high-frequency coaxial modules, providing a reliable and efficient connection solution for various applications.
The connector is designed according to the industry standard of MIL-STD-348. It has a frequency range of DC to 40GHz and is made of gold plated and passivated stainless steel. The connector can be connected through push-on or snap coupling, and offers male and female options, as well as straight and right angle choices. Additionally, it provides normal type and hermetic seals, with flange mount and thread-in mount options. The plug interface form includes full detent, limited detent, and smooth bore (including with braking). Custom connectors are also available upon request.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
|
Center Resistance |
Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Applications
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, If you don’t see the cable assembly you requirewe can design and manufacture one to meet your unique specifications!
