Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMP RF Coaxial Conector | Frequency Range: | DC~40GHz |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS |
| Gender: | Jack | Life Span: | 500Cycles |
| Body Style: | Straight | Cable Type: | CXN3506 |
| Mount Method: | Flange Mount | ||
| High Light: | Straight RF Coaxial Connector,CXN3506 Cable Socket RF Connector,Seamless RF Connector |
||

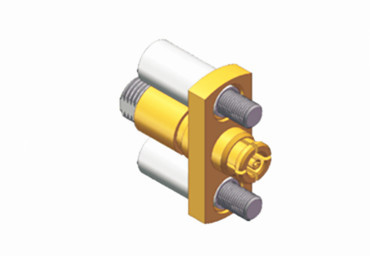

High-Quality Socket RF Connector for CXN3506 Cable - Ideal for Seamless RF Connections
SMP is a compact push-on or snap-fit RF coaxial connector that offers small size, lightweight, excellent seismic performance, and wide operating bandwidth. Its operating frequency can reach up to 30GHz (our SMP connector products can even achieve 40GHz), and the plug features three interface forms: full detent, limited detent, and smooth bore (including with braking). This connector is widely used in wireless communication, aerospace, and other fields, making it an essential component of modern high-performance microwave systems.
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/ | |

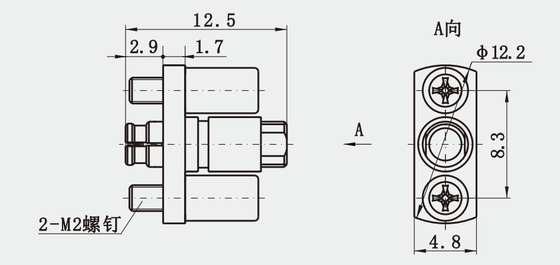

| Model Number | L(mm) | D(mm) | Cable Type | Note |
| SMP-KWF506-11 | 8.3 | 13.2 | CXN3506 | Flange with 360° Free Rotate |
| SMP-KWF506-13 | 13.2 | 17.2 | CXN3506 | Flange with 360° Free Rotate |
Features and Benefits:
The DC to 40GHz connector is a sub-miniature, push-on or snap-coupling RF coaxial connector that offers a compact size and excellent seismic performance. It is available in both cable mount versions for flexible and semi-rigid cable materials, as well as PCB and cable mount connectors. The connector is gold plated and comes in normal type and hermetic options, with flange mount and thread-in mount choices. Additionally, it offers male and female, straight and right angle options, with three interface forms: full detent, limited detent, and smooth bore.
Applications:
Instrumentation refers to the use of instruments and equipment to measure, monitor, control, or analyze physical quantities or processes. This can include instruments for measuring temperature, pressure, humidity, and other environmental factors, as well as instruments for monitoring and controlling industrial processes.
Product Cataloge:
| RF Adapter |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
