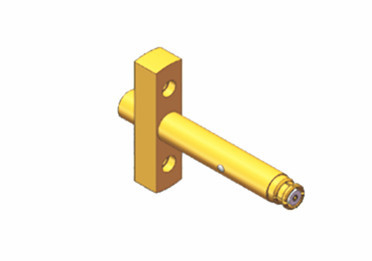

SMP Female 2 Hole Flange Mount RF Socket Connector Compact And High Quality

Large Image : SMP Female 2 Hole Flange Mount RF Socket Connector Compact And High Quality Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT(Elite)
Certification:	ROHS ISO-9001-2015
Model Number:	SMP-KFB2-21

Payment & Shipping Terms:

Minimum Order Quantity:	50 pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 Weeks
Payment Terms:	L/C, T/T, Western Union, Credit Card
Supply Ability:	300,000,000 pcs per year

Contact Now

Detailed Product Description

Body Material:	Brass	Impedance:	50Ohm
Color:	Gold Plated	Body Style:	Straight
Type:	SMP Female RF Adapter	Engagement Force:	45N Max
Disengagement Force:	9N Min	Durability:	500 Cycles
Operating Temperature:	-55 To +125°C
High Light:	Flange Mount RF Socket Connector , SMP Female RF Socket Connector , Compact SMP RF Connector

Superior Performance SMP Female 2-Hole Flange Mount RF Socket Connector: Reliable, Compact and High-Quality

SMP is a miniature push-on RF coaxial connector that provides excellent performance with its small size, lightweight design, and superior seismic resistance. It has an extensive operating frequency range of up to 30GHz (with our high-performance SMP connector, the frequency can reach 40GHz). The plug features three interface forms: full detent, limited detent, and smooth bore (including with catcher mitt)These various interface forms are designed to accommodate the required axial or radial movement for blind mating in broadband connector coupling applications.

The SMP connector is an ideal solution for high-reliability modular integration installations, providing reliable connectivity in a compact form factor.

General Specification for SMP Connector Adapter
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS(at sea level)
Dielectrics Voltage-resistance	500VRMS(at sea leavel)
Insulation Resistance	≥5000MΩ
Contact Resistance	Outer conductor	normal≤2.5mΩ, hermetically sealed ≤4mΩ
Contact Resistance	Center conductor	normal≤6mΩ, hermetically sealed ≤26mΩ
Frequency Range	DC~18GHz	18~26.5GHz	26.5~40GHz
VSWR for straight connector	≤1.25	≤1.3	≤1.4
VSWR for right angel connector	≤1.3
VSWR for adapter	≤1.25	≤1.3	≤1.4
VSWR other	≤1.3
Center Conductor	Male	Tin Phosphor Bronze/Kovar Alloy	gold plated
Center Conductor	Female	beryllium bronze	gold plated
Elastic Contact	beryllium bronze		gold plated
Shell and other Metal Parts	brass/beryllium bronze/Kovar Alloy/copper alloy/stainless steel passivated
Insulators	glass sintering/PTFE/PEI
Leakage Rate for hermetically sealed connector	1.01325×10-3 Pa·cm3 /s

Features:

Compact size, suitable for use in space-constrained environments.
Push-on connection type for easy and fast insertion and removal.
High operating frequency, suitable for high-speed data transmission applications.
Excellent electrical performance and high signal transmission quality.
Reusable with high reliability.
Good mechanical strength and durability, able to withstand vibration and impact to some extent.
Supports a wide range of cable types and interface standards for excellent compatibility.

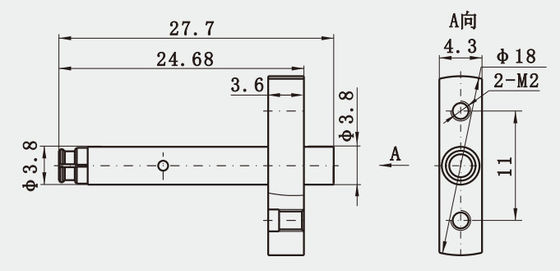

Outline Drawing of
Superior Performance SMP Female 2-Hole Flange Mount RF Socket Connector: Reliable, Compact and High-Quality
SMP Female 2 Hole Flange Mount RF Socket Connector Compact And High Quality 0

Install Introduction:

NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.

Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. Microwave Rotary Joints
8. ODM Products
SMP Female 2 Hole Flange Mount RF Socket Connector Compact And High Quality 3
