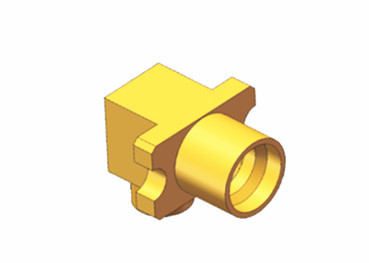

Experience Enhanced Connectivity with SMP Male Right Angle Flange Mount Limited Detent RF Connector
SMP is a compact push-on (snap coupling) RF coaxial connector that boasts small size, lightweight design, excellent seismic performance, and wide operating bandwidth. It can operate up to 30GHz (with our high-performance SMP connector, the frequency can reach 40GHz). The plug features three interface forms: full detent, limited detent, and smooth bore (including with braking). Available in PCB mount, cable mount, and in-series adaptors, it provides an interconnect solution for board-to-board, blind mate, and rack-and-panel applications while maintaining package density. Ideal for high-reliability modular integration installations.
Specification:
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Features and Benefits:
High Frequency Applications: SMP connectors have wide frequency band characteristics, with operating frequencies that can reach up to DC~40GHz.
Small size and lightweight: SMP series connectors are compact micro-connectors, particularly suitable for modular dense installation applications.
Reliable Linkage: The design of the SMP connector ensures the stability and reliability of the connection, making it suitable for high-reliability connection environments.
Easy Installation: Whether it's PCB mounting, cable mounting, or in-series adapters, SMP provides a convenient and fast solution while maintaining package density for board-to-board and blind mate interconnection applications.
Strong Seismic Performance: SMP connectors have excellent seismic performance, allowing them to maintain stable connections in vibration environments.
Product Cataloge:
| RF Adapter |
| Waveguide to Coaxial Adapter |
| RF Cable Assemblies |
| J30J Series Connector |
| Microwave Rotary Joints |
| Glass-to-metal Hermetic Seals |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Applications:
Antenna connections: Due to their small size and excellent performance, SMP connectors are an ideal choice for connecting antennas.
Broadband equipment installation: The SMP series connectors provide an ideal solution for modular dense installation applications. They can be installed in environments with extremely high density, with the minimum installation spacing of the smallest SMP connector reaching 4.3mm.
Testing and measurement: In applications that require high precision and frequency, SMP connectors can provide excellent performance. For example, they can be used to achieve axial misalignment blind mating, working together with Samtec's high-performance low-loss microwave cable assemblies.
Quantum computing: In the emerging field of quantum computing, SMP connectors also play an important role.

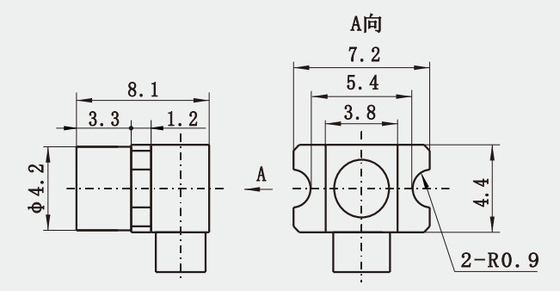

Detailed Drawing:
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
