| Product Name: | SMP RF Coaxial Conector | Impedance: | 50Ω |
|---|---|---|---|
| Certificate: | CE ROHS ISO-9001-2015 | Durability: | 500 Cycles |
| Gender: | Female | Body Style: | Straight |
| Material: | Brass | Mount Method: | Flange Mount |
| Plating: | Gold Plating | ||
| High Light: | SMP Type RF Connector,Full Detent SMP RF Connector,Flange Mount RF Male Connector |
||

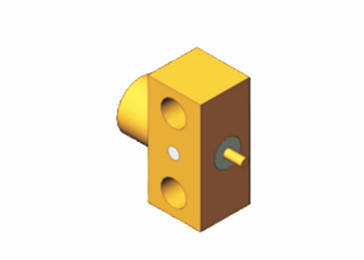

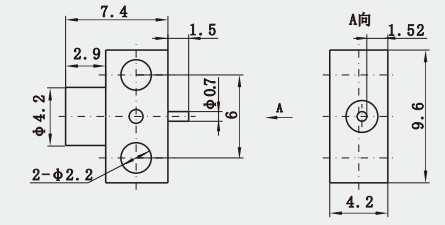

Premium SMP Type Male Flange Mount Full Detent RF Connector with Superior Performance and Reliability
The SMP interface is a compact connector, similar in size to MMCX connectors, but with a wider frequency range of DC to 40Ghz. The SMP interconnect series utilizes floating female-to-female adapters (commonly known as bullets) for stacking boards with SMP male PCB connectors. This robust design and the ability to handle misalignment in both radial and axial directions make it suitable for blind interconnection applications. It is widely used in miniaturized high-frequency coaxial modules.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Applications:
Test and Measurement: RF coaxial connectors have important applications in various test and measurement equipment such as network analysers, spectrum analysers and signal generators. They are used to connect instruments to the device under test for accurate signal transmission and measurement.
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
