| Body Material: | Brass | Impedance: | 50 Ohm |
|---|---|---|---|
| Color: | Gold Plated | Body Style: | Straight |
| Type: | SMP Male RF Adapter | Mount Method: | Blind Mate |
| Engagement Force: | 45N Max | Disengagement Force: | 9N Min |
| High Light: | Airtight Hermetic SMP RF Connector,Depth 2.79 RF Connector,50 Ohm Brass RF Male Connector |
||
SMP Male Airtight Hermetic Sealed Limited Detent Interface Depth 2.79 RF Connector
SMP is divided into three types of interfaces: Smooth bore, half escapement and full escapement according to different connection holding force to meet different application requirements:
1,Smooth bore interface with minimum connection holding force, allowing axial and radial misalignment, often used for blind connection or non-precision type measurement.
2, full escapement interface (Full detent), the best connection holding force, anti-vibration, shock performance is the best. Because it is not easy to remove the connection, even though the stability is very high, it will greatly affect the service life and convenience of the product, so it is often used for cable connection.
3, half escapement interface, also known as limited escapement interface (Limited detent), a combination of the advantages of light hole and full escapement, high test stability, suitable for precision-type measurement.
| General Specification for SMP Connector Adapter | ||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~40GHz
|
|||
|
Rated Voltage
|
170VRMS(at sea level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS(at sea leavel)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
|
Outer conductor
|
normal≤2.5mΩ, hermetically sealed ≤4mΩ
|
||
|
Center conductor
|
normal≤6mΩ, hermetically sealed ≤26mΩ
|
|||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector |
≤1.25
|
≤1.3 | ≤1.4 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.25 | ≤1.3 | ≤1.4 | |
| VSWR other | ≤1.3 | |||
| Center Conductor | Male |
Tin Phosphor Bronze/Kovar Alloy
|
gold plated | |
| Female |
beryllium bronze
|
gold plated | ||
|
Elastic Contact
|
beryllium bronze
|
gold plated | ||
|
Shell and other Metal Parts
|
brass/beryllium bronze/Kovar Alloy/copper alloy, stainless steel passivated
|
|||
|
Insulators
|
glass sintering/PTFE/PEI
|
|||
|
Leakage Rate for
hermetically sealed connector
|
1.01325×10-3 Pa·cm3 /s
|
|||
Features:
* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic and cable connector configurations
* Custom connectors available

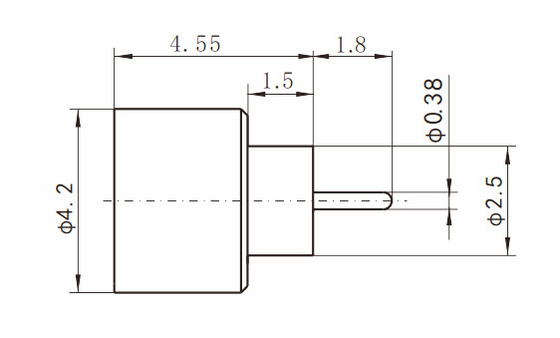

Outline Drawing of
SMP Male Airtight Hermetic Limited Detent Interface Depth 2.79 RF Connector
Related SMP Hermetically Sealed Connectors
1.
| SMP(M)-JHD160-JH | Male Limited Detent | Hermetic, interface depth 18 bondable |
2.
| SMP(M)-JHD199-JH | Male Limited Detent | Hermetic, Interface depth 1.7 Bondable |
3.
| SMP(M)-JHD457-S-WP | Male Smooth Bore | Hermetic, Interface depth 2.79 |
4.
| SMP(M)-JHD487-WP | Male Limited Detent | Hermetic, Interface depth 2.79 |
5.
| SMP(M)-JHD618-S-WP | Male Smooth Bore | Hermetic, Interface depth 2.79 |
Install Introduction:
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
