Product Details:
Payment & Shipping Terms:
|
| Body Material: | Brass | Impedance: | 50Ohm |
|---|---|---|---|
| Color: | Gold Plated | Body Style: | Straight |
| Engagement Force: | 45N Max | Rated Withstand Voltage: | 170VRMS* |
| Disengagement Force: | 9N Min | Frequency Range: | DC~40GHz |
| High Light: | Male Hermetically Sealed Connector,Depth 2.79 SMP Male Connector,SMP RF Male Connector |
||
Gold SMP Male Connector for 2#Semi Rigid/Flexible Cable Limited Detent Interface Depth 2.79
Sub miniature push-on (SMP) Connectors are plug-in connectors for applications up to 40GHz. These connectors are easy to connect and disconnect as they can be pushed against each other to make a connection and pulled apart to open the connection. They do not need to be screwed on like most other connectors. The amount of force that is required to connect or disconnect SMP connectors is known as detent. SMP connectors are available in three different detent systems - full, limited and smooth bore, with respective levels of engagement/disengagement forces. They are available in both push-on and snap-on mating styles.
| General Specification for SMP Connector Adapter | ||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~40GHz
|
|||
|
Rated Voltage
|
170VRMS(at sea level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS(at sea leavel)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
|
Outer conductor
|
normal≤2.5mΩ, hermetically sealed ≤4mΩ
|
||
|
Center conductor
|
normal≤6mΩ, hermetically sealed ≤26mΩ
|
|||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector |
≤1.25
|
≤1.3 | ≤1.4 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.25 | ≤1.3 | ≤1.4 | |
| VSWR other | ≤1.3 | |||
| Center Conductor | Male |
Tin Phosphor Bronze/Kovar Alloy
|
gold plated | |
| Female |
beryllium bronze
|
gold plated | ||
|
Elastic Contact
|
beryllium bronze
|
gold plated | ||
|
Shell and other Metal Parts
|
brass/beryllium bronze/Kovar Alloy/copper alloy, stainless steel passivated
|
|||
|
Insulators
|
glass sintering/PTFE/PEI
|
|||
|
Leakage Rate for
hermetically sealed connector
|
1.01325×10-3 Pa·cm3 /s
|
|||

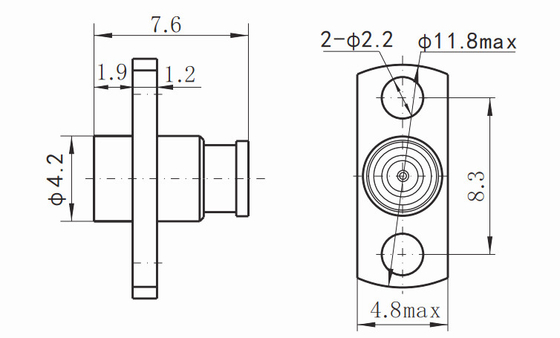

Outline Drawing of
SMP Male RF Connector
| Model No. | L(mm) |
| SMP-JFB2-69 | L=7.6, Male, Limited detent, Interface deepth 2.79 |
| SMP-KB2-9 | L=15.5, Male, Limited detent |
| SMP-KFB2-87 | L=7.3, Female, Limited detent |
| SMP-KFB2-96 | L=12.5, Female, Limited detent |
| SMP-KWB2-23 | Right angle, Female, Limited detent |
| SMP-KWFB2-42 | Right angle, Female, Limited detent |
Features:
* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic and cable connector configurations
* Custom connectors available
Related SMP female connectors
1.
2.
3.
4.
5.
Install Introduction:
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
