| Product Name: | SMP Female Cable Connector | Frequency Range: | DC~40GHz |
|---|---|---|---|
| Impedance: | 50Ω | Connector Series: | SMP |
| Gender: | Socket | Shell Material: | Kovar 4j29 |
| Glass: | 7052 7070 | Hermeticity: | 1.01325×10-3Pa·cm3/s |
| High Light: | Female SMP RF Connector 40GHz,Flex Cable SMP RF Connector,Semi Rigid Cable SMP Connector |
||
SMP Female Gold RF Connector for 1# Semi-rigid/Flex Cable Connector
The SMP-style push-on connector interface typically has an inner female-to-female component, called a bullet or blindmate and two outer panel, circuit or cable-mounted receptacles called shrouds. The whole system lets you make connections without threads at all, so you don't need any tiny wrenches. The best part about this system is that a small amount of radial misalignment is possible during mating, something that would be unacceptable with threaded connectors.
Specification of SMP RF Connector
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Features and Benefits of SMP RF Connector
* Optional bullet adaptors in two standard lengths
* Performance up to 40GHz
* Compensates for misalignment in X and Y directions
* Interfaces for tight, more secure connections
* Non-magnetic options available for aerospace applications

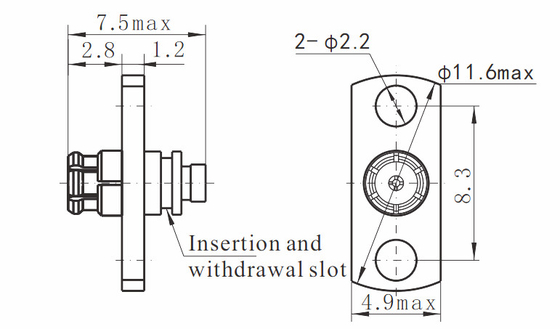

Detailed Drawing of SMP RF Connector(mm):
| Model Number | Description |
| SMP-KFB1-10 | SMP female RF Connector for 1#Semi-rigid/Flex Cable |
Other SMP RF Connector(mm): "K" means "female", "J" means "male"
Applications of SMP RF Connectors:
- Antennas
- Broadband
- Telecommunications
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
