SSMP Female RA Rotatable Flange Mount RF Cable Connector for CXN3506/MF108A
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Mini SMP Connector | Gender: | Female |
|---|---|---|---|
| Material: | Brass | Plating: | Gold Plated/ Nickel Plated |
| Impedance: | 50Ω | Frequency Range: | DC~50GHz |
| Rated Voltage: | 170VRMS* | Insulation Resistance: | ≥2000MΩ |
| Highlight: | SSMP RF Cable Connector,Female RA RF Cable Connector,CXN3506 RF Cable Connector |
||
SSMP Female Right Angle(RA) Rotatable Flange Mount RF Cable Connector for CXN3506/MF108A
SMPM, also known as SSMP series are a high frequency push-on connector with its interfacing system featuring an inner female-to-female component, called a bullet or blindmate and two outer panel, circuit or cable-mounted receptacles called shrouds. SMPM connectors are typically available up to 50GHz.
The male connector is available in Smooth Bore (SB) for easy connection and disconnection, Limited Detent (LD) providing a level of insertion and withdrawal force, and Full Detent (FD) requiring substantial insertion and withdrawal forces.
Specification
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Brass/Kovar Gold plated Stainless steel Passivation |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Features
* Frequency Range: DC - 50GHz
* 50Ω Impedance; Blindmateable configuration
* Ability to withstand Radial/Axial Misalignment
* Board-mount, Field-replaceable, Bullets, Hermetic and Cable Connector configurations
* Custom Connectors Available

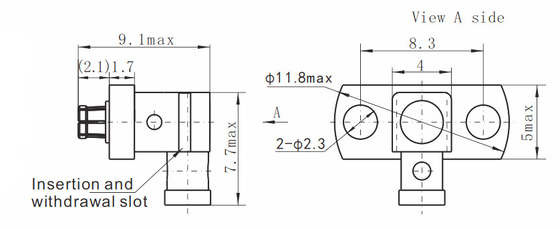

Detailed Drawing
Application:
SMPM connectors are specifically designed for interconnecting board-to-board applications, typically found in drawers and racks of microwave-band and high grade commercial systems such as in phased arrays, airborne radar, active antennas, satellites and a range of other radar systems.
Related Products:
1.
| SSMP Female Cable Connector for 1#Semi-Rigid/Flex Flange Mount Type |
2.
|
3.
|
4.
| SSMP Female RF Cable Connector for CXN3506/MF108A Cable Flange Mount Type |
5.
| SSMP Female RF Cable Connector for CXN3506/MF108A Cable Flange Mount Type |
6.
| SSMP Male RF Connector for Cable CXN3506/MF108A Full Detent Connector |
Product Cataloge:
| RF Adapter |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
