| Product Name: | SMP RF Coaxial Conector | Impedance: | 50Ω |
|---|---|---|---|
| Certificate: | CE ROHS | Durability: | 500 Cycles |
| Gender: | Female | Body Style: | Straight |
| Frequency Range: | DC-40Ghz | ||
| High Light: | Mini SSMP Female RF Coaxial Connector,2 Hole RF Coaxial Connector,RF Coaxial SMP Connector |
||

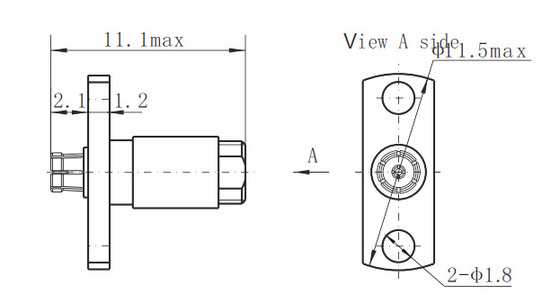

Mini SSMP Female 2- Hole Flange Mount RF Coaxial Connector
SMP is a kind of miniature push in RF coaxial connector, which has the characteristics of small size, light weight, good seismic performance and wide working frequency band. The working frequency can reach 30GHz (the high-performance SMP connector produced by our company can reach 40GHz). The plug has three interface forms, namely, full release, limited release and non threaded hole (including with brake). Various interface forms can meet the axial or radial movement requirements of blind plug in the use of generalized connector coupling. It is suitable for modular intensive installation occasions requiring high reliability.
| Electrical Characteristics | ||||
| Impedance | 50Ω | |||
| Frequency Range | DC~40GHz | |||
| Rated Voltage | 170VRMS | |||
| Dielectrics Voltage-resistance |
500VRMS
|
|||
| Insulation Resistance |
≥2000MΩ
|
|||
|
|
Outer conductor | ≤4mΩ | ||
| Center conductor | ≤26mΩ | |||
|
|
DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| Straight Connector | ≤1.25 | ≤1.3 | ≤1.5 | |
| Angle Connector | ≤1.3 | |||
| Adapter | ≤1.2 | ≤1.3 | ≤1.5 | |
| Other | ≤1.3 | |||
Features and Benefits
| DC to 40 GHz |
| Sub-miniature |
| Gold plated |
| Compact size |
| Male& Female, Straight & Right Angle choice |
| Push-on or snap coupling |
| PCB & cable mount connectors |
| Full detent, Limited detent and Smooth bore |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
- Antennas
- Broadband
- Instrumentation
- Aerospace
- Military
- Instrumentation
- Broadband
- Board-to-board interconnect
- Phased array antennas
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
