RoHS Mini SMP Female RA SMPM RF Connector 2 Holes Flanges Mount For Cable

SMPM(mini SMP) Female RA RF Connector 2 Holes Flanges Mount RoHS Compliant for Cable

SSMP connector 50 Ω Impedance, blind mate configuration. Series SMP is one of the subminiature connectors which smaller than SMP. The frequency range up to 50 GHz. It is commonly used in miniaturized high frequency coaxial modules and is offered in both push-on and snap-on mating styles. It is available in smooth bore, limited detent and full detent styles. They are including female, male, right angle, straight connector.

Features

Male CONNECTORS HAVE SMOOTH HOLES (SB) FOR EASY CONNECTION AND DISCONNECTION, LIMITED STOP (LD) PROVIDES A DEGREE OF INSERTION AND WITHDRAWAL EFFORT, AND FULL STOP (FD) requires a LARGE insertion AND WITHDRAWAL effort. In blind fitting applications, one shield connector is usually designated as a snap-back interface and the other as a sliding sleeve interface. This ensures that the bullet adapter remains anchored in the same shield connector when the connection is disconnected. The full stop (FD) and limited stop (LD) interfaces have different coupling and decoupling forces respectively. LD is usually selected as a snap interface for PCB mounting or blind matching applications, while FD is mainly used for cable connections requiring high retention. The two sliding interfaces, Smooth Bore (SB) and Catcher's Mitt (CM), allow for reduced connections compared to the snap-on interface. The push-in interface creates a sliding connection that does not physically align with the reference plane, allowing axial and radial misalignments. SB and CM have the same bonding/disengagement force. However, the CM is usually specified as a shield configuration in blind fit applications because its wide introduction chamfer helps capture the bullet and guide it into place.

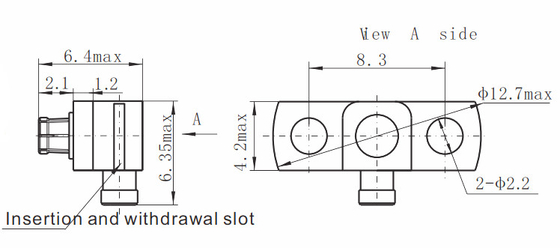

Detailed Drawing

Application:

* Network

* Satcom

* Computer/LANs

* Base Station

* Outdoor facilities

* Automotive

* Jump line join

* Basic facility

* Radar,microwave

* Telecommunications

* Mobile communication

* Instrumentation

* Radio, TV aerial system

Product Cataloge:

Packaging Details:

* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
