| Product Name: | RF Coaxial Adapter | Plating: | Gold Plated |
|---|---|---|---|
| Impedance: | 50Ω | Dielectric: | PTFE |
| Type: | RF Adaptor | Application: | RF |
| Gender: | Female To Female | Material: | Brass |
| High Light: | Brass RF Coaxial Adapter 6GHz,Between Series SMA To MCX Adapter,Female To Female RF Coaxial Adapter |
||
SMA Female to MCX Female Between Series Gold Plated Brass 6GHz RF Coaxial Adapter
From Xi'an Elite Electronic is part of a very large selection of in-stock interconnect RF components. Our MCX to SMA adapter is a coaxial adapter design with a 50 Ohm impedance. This 50 Ohm MCX adapter is manufactured to precise RF adapter specifications and has a maximum VSWR of 1.35:1.
MCX to SMA adapter is constructed with jack gender on side 1 and female on side 2. MCX jack to SMA female coaxial adapter from Xi'an Elite Electronic is a straight body style.

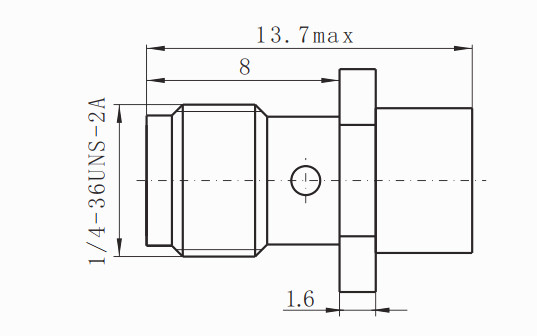

Outline Drawing and Picture(mm)
Other SMA to MCX Adapter:
1.
| Model No. | Description |
| SMA/MCX-KJ | SMA female to MCX male adapter |
2.
| Model No. | Description |
| SMA/MCX-KK | SMA female to SMA female adapter |
3.
| Model No. | Description |
| SMA/MCX-KWJ | SMA female to MCX male right angle adapter |
4.
| Model No. | Description |
| SMA/MCX(S)-KYK | SMA female to MCX female bulkhead adapter with seal ring |
Application:
* network
*Satellite communications
* Computer /LAN
* Computer /LAN
* Mobile communications
* instrument
* the base station
* Mobile communications
* Outdoor facilities
* Radar, microwave
* telecom
* instrument
* the car
* Jumper connection
* Basic facilities
* Radio and television antenna systems
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
