| Product Name: | K Type 2.92mm To SSMP RF Adapter | Impedance: | 50Ω |
|---|---|---|---|
| Type: | RF Adaptor | Feature: | Straight |
| Gender: | Female To Male | Durability: | 500 Circles |
| Insulator: | PTFE | Plating: | Gold Plated |
| Contact Material: | Brass, Sn-P Bronze | ||
| Highlight: | K Type to SSMP RF Adapter,2.92mm to SSMP RF Adapter,K Type 2.92mm to SSMP RF Adapter |
||

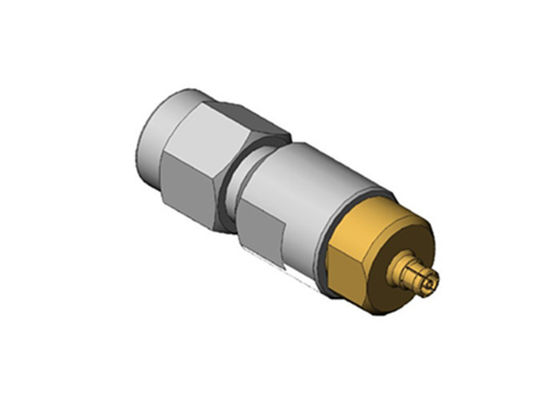

K Type 2.92mm to SSMP Male Plug to Female Jack RF Adapter
SMP electrical connectors are snap-on RF coaxial connectors with subminiature size, light weight, good anti-vibration capability and wide frequency range up to 30 GHz (Our SMP coaxial RF connectors can reach up to 40 GHz or more), which makes them ideal RF connectors for intensive interconnection conditions where small size, high-performance and reliable connectors are needed.
2.K 2.92mm RF Connector
The high precision 50 ohm coaxial 2.92 mm (Female) to 2.4 mm (Male) adapters for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.
As manufacturer, we can customize K SMP connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.
Outline Drawing and Picture(mm)
Other SMA Male Female to D4/SMP/MCX Male Female RF Adapter
|
Part Number
|
Description
|
|
K/SSMP-JK2G
|
K Type 2.92mm male to SSMP female rf adapter
|
|
K/SSMP-JK4G
|
K Type 2.92mm male to SSMP female rf adapter
|
|
K/SSMP-JJG
|
K Type 2.92mm male to SSMP male rf adapter
|
|
K/SSMP-KK1 |
K female to SSMP female rf adapter
|
|
K/SSMP-KFKG |
K female to SSMP female flange mount rf adapter
|
|
K/SSMP-KFJ1G
|
K female to SSMP male flange mount rf adapter
|
1.
2.
3.
4.
5.
6.
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
Workshop & Exibition
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
