Gold Nickel Plated Beryllium Copper RF Load Termination 40 GHz With Mini SMP Male Input

Name: Gold Nickel Plated Beryllium Copper RF Load Termination 40 GHz With Mini SMP Male Input
Brand: ELT
SKU: SSMP-JR-0.5W
Rating: 4.9 (144 reviews)

Large Image : Gold Nickel Plated Beryllium Copper RF Load Termination 40 GHz With Mini SMP Male Input Get Best Price

Product Details:

Place of Origin:	Shaanxi, China
Brand Name:	ELT
Certification:	CE ROHS
Model Number:	SSMP-JR-0.5W

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000000 Pieces Per Month

Contact Now

Detailed Product Description

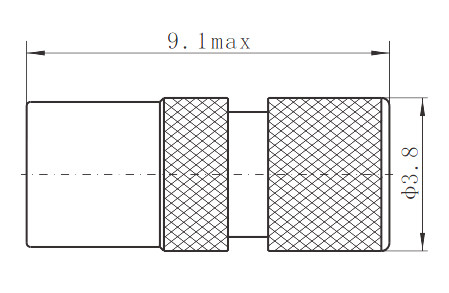

Impedence:	50 Ohm	Length:	9.1mm Max
Diameter:	φ3.8	Frequency Range:	DC-40GHz
Housing:	Brass	Note:	Chip Resistor
High Light:	RF Load Termination 40 GHz , SMP Male RF Load Termination

0.5 Watt RF Load Up to 40 GHz With Mini SMP Male Input Gold over Nickel Plated Beryllium Copper

SSMP RF Load from Xi'an Elite Electronic is just part of a wide selection of coaxial terminator products supplied for radio, antenna and other types of RF components for typical use, production, laboratory test and measurement, defense / military, etc. which are specifically made ready for quick shipment. Our coaxial radio requency load termination is manufactured in a RF load design with SMP connector. This SMP RF load is a female gender and has no chain.

SSMP Male RF load from Xi'an Elite Electronic is 50 Ohm impedance and is rated for a maximum frequency of 40 GHz . Dummy load / RF termination part number SSMP-JR-0.5W has a maximum input power of 1 Watt and a maximum VSWR of 1.35:1.

Electrical data	Requirments
Frequency range	DC-40GHz
Characteristic impedance	50Ω
VSWR	≦1.35
Power	0.5W

Mechanical data	Requirments
Durability (matings)	≥500

Environmental data	Requirments
Temperature range	-55℃ to 125℃

Material data	Requirments
Connector parts	Material	Plating
Body	Brass	Gold
Coupling nut	Brass	Gold
Pin contacts	Beryllium copper	Gold
Insulators	PTFE

Gold Nickel Plated Beryllium Copper RF Load Termination 40 GHz With Mini SMP Male Input 0

Details of 0.5 Watt RF Load Up to 40 GHz With Mini SMP Male Input Gold over Nickel Plated Beryllium Copper

Advantage :

* High Reliable

* Reliable Mechanical Performance

* Wide Frequency Range from DC to 40GHz

Applications :

* Aerospace
* Military
* Broadband
* Instrumentation
* Routers
* Telecommunications
* High-Speed Applications (10 to 40 Gbits)
* Cable Assembly
* PCB
* Surface Mount Connections
* Features and Benefits

Features & Benefits:

* Blindmate / push on design
* RF performance DC to 40 GHz
* Designed to accommodate both radial and axial misalignment
* Push-on and snap-on mating styles for quick installation
* Very dense packaging possibilities
* Next generation phase arrays
* High speed semiconductor test
* Customer specific development

Since the matched load needs to be customized according to your needs, please provide the following requirements when you send us inquiry:

*The frequency range you need.

*Power requirement.

*Connector type

*Your special requirements if you have (VSWR, temperature, size, etc.)

Related RF Loads:

Gold Nickel Plated Beryllium Copper RF Load Termination 40 GHz With Mini SMP Male Input 1

Shipping Service:

The shipment will be delivered via major global expresses, such as DHL, UPS, FedEx etc. Currently, it will be sent out from Xi'an, China.
