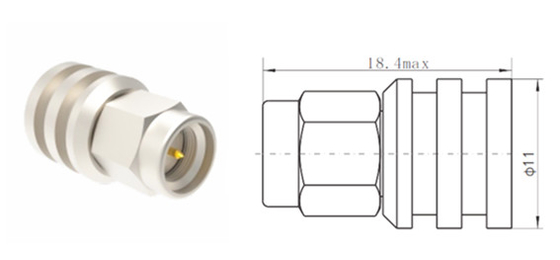

2 Watt Power 50Ohm SMA Male RF Coax Load/Termination DC-18GHz Cylindrical Resistor

2 Watt Power 50Ohm SMA Male RF Coax Load/Termination DC-18GHz Cylindrical Resistor
2 Watt Power 50Ohm SMA Male RF Coax Load/Termination DC-18GHz Cylindrical Resistor 2 Watt Power 50Ohm SMA Male RF Coax Load/Termination DC-18GHz Cylindrical Resistor 2 Watt Power 50Ohm SMA Male RF Coax Load/Termination DC-18GHz Cylindrical Resistor

Large Image :  2 Watt Power 50Ohm SMA Male RF Coax Load/Termination DC-18GHz Cylindrical Resistor Get Best Price

Product Details:
Place of Origin: Shaanxi, China
Brand Name: ELT
Certification: CE ROHS
Model Number: SMA-JR-2W
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000000 Pieces Per Month
Detailed Product Description
Impedence: 50Ohm Size: 18.4mm Max
VSWR: ≤1.2 Frequency Range: DC-18GHz
Power (W): 2W Note: Cylindrical Resistor
High Light:

SMA Male RF Coaxial Termination

,

2 Watt Power RF Load Termination

,

Cylindrical Resistor RF Termination Load

2 Watt Power 50Ohm SMA Male RF Coax Load/Termination DC-18GHz Cylindrical Resistor



The low-power matched RF load designed and produced byElite Electronic has an impedance of 50Ω, including male and female interface of SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm, etc., which can meet the different needs of users.




Model No. SMA-JR-2W
Power  2W
Frequency Range  DC-18GHz
VSWR  ≤1.2
Note  Cylindrical Resistor

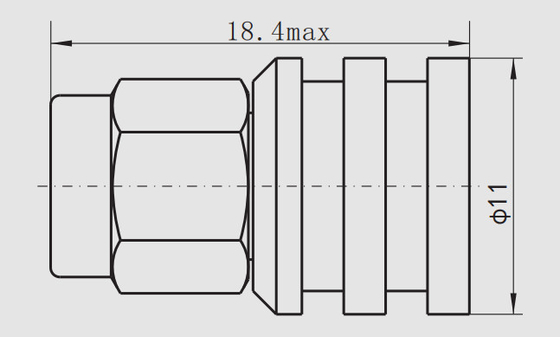

Details of 2 Watt Power 50Ohm SMA Male RF Coax Load/Termination DC-18GHz Cylindrical Resistor



2 Watt Power 50Ohm SMA Male RF Coax Load/Termination DC-18GHz Cylindrical Resistor 0


Advantage :



* High Reliable


* Good Mechanical Performance


* Wide Frequency Range from DC to 18GHz





Applications :



  • General Purpose Test
  • Communication
  • Precision Test and Measurement

Key Features:

Polarity                Standard

Interface              SMA (Male)
                           (SMA per MIL-C-39012)

Impedance           50Ω

Body Shape         Straight


Performance Features:

Frequency Range:           DC~18GHz

VSWR                              DC~18GHz: ≤1.2

Average Power ≤2W

Durability                          500 Cycles

Operating Temperature    -55℃~+125℃





Shipping Service:



The shipment will be delivered via major global expresses, such as DHL, UPS, FedEx etc. Currently, it will be sent out from Xi'an, China.
