SMA Male 1watt Power 50Ohm RF Coax Load/Terminator DC-18GHz Chip Resistor

Large Image : SMA Male 1watt Power 50Ohm RF Coax Load/Terminator DC-18GHz Chip Resistor Get Best Price

Product Details:

Place of Origin:	Shaanxi, China
Brand Name:	ELT
Certification:	CE ROHS
Model Number:	SMA-JR2-1W

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000000 Pieces Per Month

Contact Now

Detailed Product Description

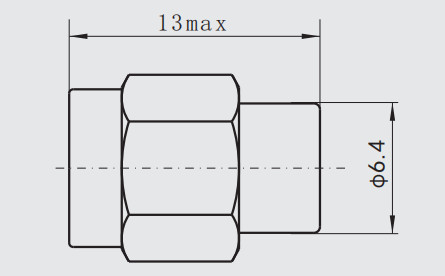

Impedence:	50Ohm	Size:	13mm Max
VSWR:	≤1.2	Frequency Range:	DC-18GHz
Power (W):	1W	Note:	Chip Resistor
Highlight:	RF 50 Ohm Coax Terminator , SMA Male RF Coaxial Terminators , 1 Watt Power SMA Terminator

SMA Male 1Watt Power 50Ohm RF Coax Load/ Terminator DC-18GHz Chip Resistor

The low-power matched RF load designed and produced by Elite Electronic has an impedance of 50Ω, including male and female interface of SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm, etc., which can meet the different needs of users.
