Mini SMP Male Termination RF Coaxial Connector Gold Smooth Bore 1.4 VSWR

Large Image : Mini SMP Male Termination RF Coaxial Connector Gold Smooth Bore 1.4 VSWR Get Best Price

Product Details:

Place of Origin:	Shaanxi, China
Brand Name:	ELT
Certification:	CE ROHS
Model Number:	SSMP-JR1-S-0.5W

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000000 Pieces Per Month

Contact Now

Detailed Product Description

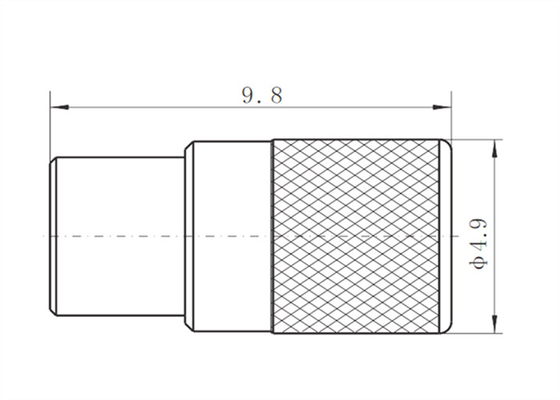

Impedence:	50 Ohm	Length:	9.8mm Max
Diameter:	φ4.9	Frequency Range:	DC-40GHz
Housing:	Brass	Note:	Cylindrical Resistor
High Light:	Male Termination RF Coaxial Connector , Gold Smooth Bore RF Coaxial Connector , SMP Termination Connector

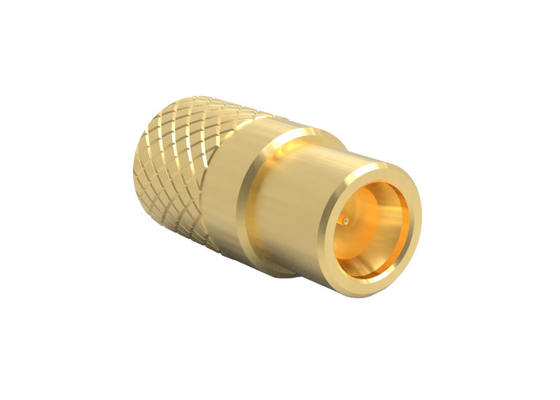

Mini SMP Male (Plug) Termination (Load) 0.5 Watts To 40 GHz Gold SB 1.4 VSWR

Frequency ratings for Xi'an Elite Electronic's Mini SMP 50 Ohm RF load terminations range from DC to 40 GHz. Xi'an Elite Electronic's Mini SMP 50 Ohm RF load terminations are available in female and male genders. Mini SMP 50 Ohm RF load terminations varieties from Xi'an Elite Electronic are RoHS compliant.

The low-power matched RF load designed and produced by Xi'an Elite Electronics has an impedance of 50 Ω, including SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm and other male and female interfaces, which can meet different needs of users.

Electrical data	Requirments
Frequency range	DC-40GHz
Characteristic impedance	50Ω
VSWR	≦1.4
Power	0.5W

Mechanical data	Requirments
Durability (matings)	≥500

Environmental data	Requirments
Temperature range	-55℃ to 125℃

Material data	Requirments
Connector parts	Material	Plating
Body	Brass	Gold
Coupling nut	Brass	Gold
Pin contacts	Beryllium copper	Gold
Insulators	PTFE

Mini SMP Male Termination RF Coaxial Connector Gold Smooth Bore 1.4 VSWR 0

Details of Mini SMP Male (Plug) Termination (Load) 0.5 Watts To 40 GHz Gold SB 1.4 VSWR

Advantage :

* High Reliable

* Reliable Mechanical Performance

* Wide Frequency Range from DC to 40GHz

Applications :

* Aerospace
* Military
* Broadband
* Instrumentation
* Routers
* Telecommunications
* High-Speed Applications (10 to 40 Gbits)
* Cable Assembly
* PCB
* Surface Mount Connections
* Features and Benefits

Features & Benefits:

* Blindmate / push on design
* RF performance DC to 40 GHz
* Designed to accommodate both radial and axial misalignment
* Push-on and snap-on mating styles for quick installation
* Very dense packaging possibilities
* Next generation phase arrays
* High speed semiconductor test
* Customer specific development

Since the matched load needs to be customized according to your needs, please provide the following requirements when you send us inquiry:

*The frequency range you need.

*Power requirement.

*Connector type

*Your special requirements if you have (VSWR, temperature, size, etc.)
