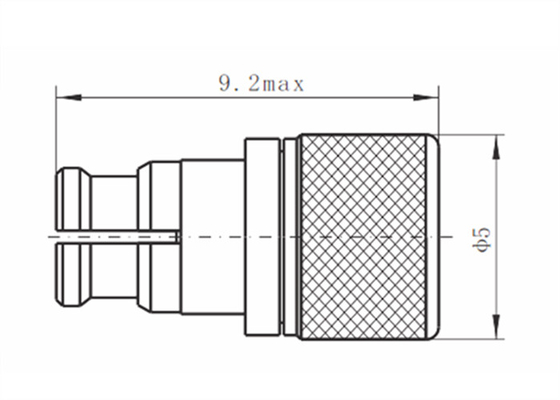

Impedence: | 50 Ohm | Length: | 9.2mm Max |
---|---|---|---|
Diameter: | φ5 | Frequency Range: | DC-40GHz |
Housing: | Brass | Note: | Cylindrical Resistor |
High Light: | SMP Female RF Coaxial Connector,Microwave RF Coaxial Termination Connector,VSWR 1.35 RF Coaxial Connector |

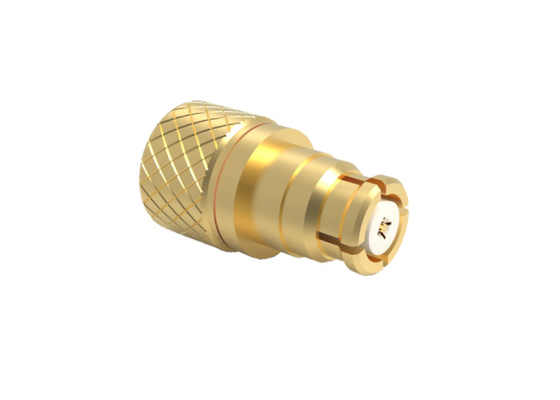

SMP Female Microwave Coaxial Load Termination VSWR 1.35 Max 0-40Ghz 0.5-1 Watt CW. BeCu Body & Contacts
SMP male RF load from Xi'an Elite Electronic is 50 Ohm impedance and is rated for a maximum frequency of 40 GHz . Dummy load / RF termination has a maximum VSWR of 1.35:1. Additional male SMP RF load specs for this component can be found by contacting us.
|
Details of SMP Female Microwave Coaxial Load Termination VSWR 1.35 Max 0-40Ghz 0.5-1 Watt CW. BeCu Body & Contacts
Advantage :
* High Reliable
* Reliable Mechanical Performance
* Wide Frequency Range from DC to 40GHz
Applications :
◆ Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ Widely used for In-building Solutions
Since the matched load needs to be customized according to your needs, please provide the following requirements when you send us inquiry:
*The frequency range you need.
*Power requirement.
*Connector type
*Your special requirements if you have (VSWR, temperature, size, etc.)
Shipping Service:
The shipment will be delivered via major global expresses, such as DHL, UPS, FedEx etc. Currently, it will be sent out from Xi'an, China.
