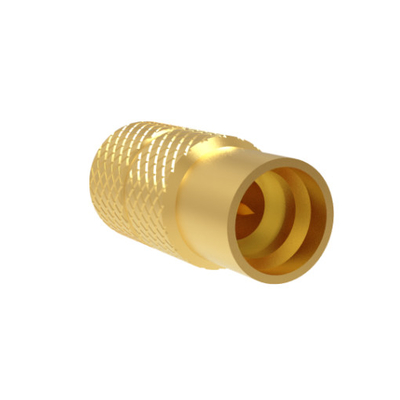

SMP Male Plug Termination Load 0.5W/1W Gold Plated 1.35 Max VSWR

Large Image : SMP Male Plug Termination Load 0.5W/1W Gold Plated 1.35 Max VSWR Get Best Price

Product Details:

Place of Origin:	Shaanxi, China
Brand Name:	ELT
Certification:	CE ROHS
Model Number:	SMP-50JR1-1W

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000000 Pieces Per Month

Contact Now

Detailed Product Description

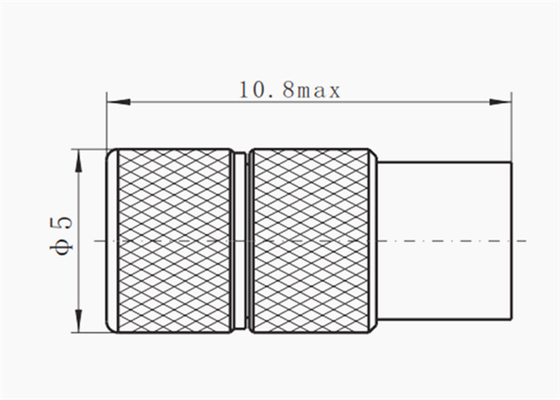

Impedence:	50Ohm	Length:	10.8mm Max
Diameter:	φ5	Frequency Range:	DC-40GHz
Housing:	Brass	Note:	Cylindrical Resistor
High Light:	Male Termination Load RF Coaxial Connector , SMP RF Coaxial Termination Connector , Gold Plated RF Coaxial Connector 0.5W

SMP Male (Plug) Termination (Load) 0.5W/1W Gold Plated 1.35 Max VSWR

SMP male RF load from Xi'an Elite Electronic is 50 Ohm impedance and is rated for a maximum frequency of 40GHz. Dummy load / RF termination has a maximum VSWR of 1.35:1. Additional male SMP RF load specs for this component can be found by contacting us.

The low-power matched RF load designed and produced by Xi'an Elite Electronics has an impedance of 50Ω, including SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm and other male and female interfaces, which can meet different needs of users.

Electrical data	Requirments
Frequency range	DC-40GHz
Characteristic impedance	50Ω
VSWR	≤1.35(40GHz)/1.2(18GHz)
Power	0.5W(40GHz)/1W(18GHz)

Mechanical data	Requirments
Durability (matings)	≥500

Environmental data	Requirments
Temperature range	-55℃ to 125℃

Material data	Requirments
Connector parts	Material	Plating
Body	Brass	Gold
Coupling nut	Brass	Gold
Pin contacts	Beryllium copper	Gold
Insulators	PTFE
