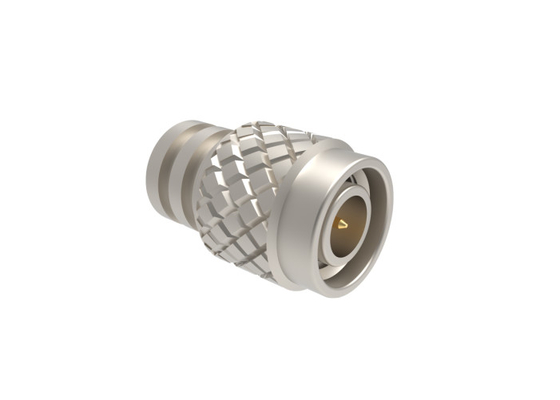

TNCA Male 2 Watt RF Coaxial Load Termination 23.5mm / 0.925″ Length DC - 18GHz

TNCA Male 2 Watt RF Coaxial Load Termination 23.5mm / 0.925″ Length DC - 18GHz
TNCA Male 2 Watt RF Coaxial Load Termination 23.5mm / 0.925″ Length DC - 18GHz TNCA Male 2 Watt RF Coaxial Load Termination 23.5mm / 0.925″ Length DC - 18GHz

Large Image :  TNCA Male 2 Watt RF Coaxial Load Termination 23.5mm / 0.925″ Length DC - 18GHz Get Best Price

Product Details:
Place of Origin: Shaanxi, China
Brand Name: ELT
Certification: CE ROHS
Model Number: TNCA-50JR-2W
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000000 Pieces Per Month
Contact Now
Detailed Product Description
Impedence: 50 Ohm Length: 23.5mm Max
Diameter: φ14.8 Frequency Range: DC-18GHz
Housing: Brass Note: Cylindrical Resistor
Highlight:

2 Watt RF Load Termination

,

23.5mm RF Coaxial Connector

,

Male RF Terminator

TNCA Male 2 Watt RF Load, 23.5mm / 0.925″ in Length, DC~18GHz RF Coaxial Termination



TNCA Male dummy load with 23.5mm / 0.925 inch in length, DC to 18GHz RF coaxial termination, ≤2W of Average Power, 50Ω impedance, VSWR 1.4:1 (max) for DC~18GHz, 500 cycles durability and -55°C~+125°C operating temperature.

The low-power matched RF load designed and produced by Xi'an Elite Electronics has an impedance of 50 Ω, including SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm and other male and female interfaces, which can meet different needs of users.



Model No.  TNCA-50JR-2W
Power  2W
Frequency Range  DC-18GHz
VSWR  ≤1.4
Note  Cylindrical Resistor

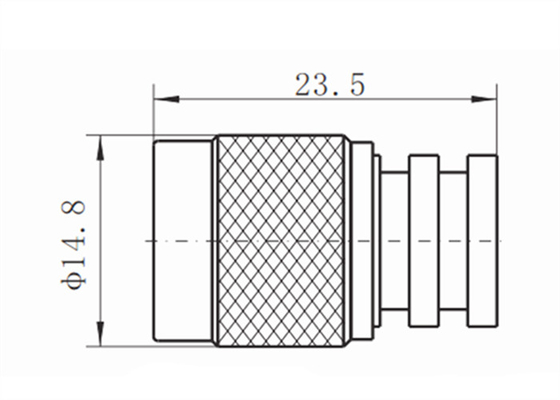

TNCA Male 2 Watt RF Coaxial Load Termination 23.5mm / 0.925″ Length DC - 18GHz 0



Details of TNCA Male 2 Watt RF Load, 23.5mm / 0.925″ in Length, DC~18GHz RF Coaxial Termination




Advantage :



* High Reliable


* Reliable Mechanical Performance


* Wide Frequency Range from DC to 18GHz





Applications :



  • General Purpose Test
  • Communication
  • Precision Test and Measurement

◆   Wide Frequency Band



◆   2G/3G/4G/LTE Coverage



◆   Low VSWR



◆   Widely used for In-building Solutions





Key Features:

Termination Type RF Load
Connector Series TNCA
Connector Gender Male
Minimum Frequency DC
Maximum Frequency 18 GHz
Impedance 50 Ohm
Maximum VSWR 1.4:1
Maximum Power 2 Watt

Material Specifications:

Housing Type Brass, Stainless Steel

Passivated

Center Contact Beryllium Copper

Gold Plated



Since the matched load needs to be customized according to your needs, please provide the following requirements when you send us inquiry:



*The frequency range you need.



*Power requirement.



*Connector type



*Your special requirements if you have (VSWR, temperature, size, etc.)





Shipping Service:



The shipment will be delivered via major global expresses, such as DHL, UPS, FedEx etc. Currently, it will be sent out from Xi'an, China.
