K2.92mm Female RF Load Chip Resistor 0.5 Watts DC - 40 GHz VSWR 1.3
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

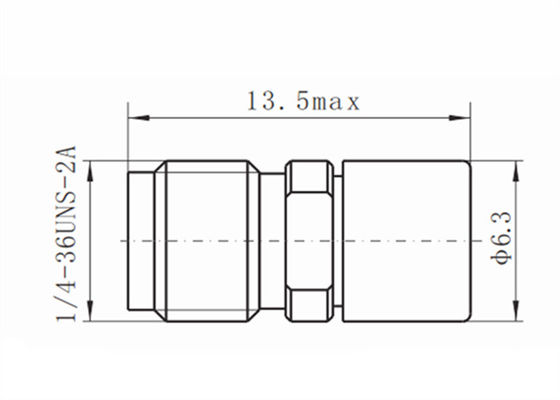

| Impedence: | 50 Ohm | Length: | 13.5mm Max |
|---|---|---|---|
| Diameter: | φ6.3 | Frequency Range: | DC-40GHz |
| Housing: | Brass | Note: | Chip Resistor |
| Highlight: | K2.92mm female RF load resistor,0.5 watt RF termination resistor,40 GHz VSWR 1.3 resistor |
||

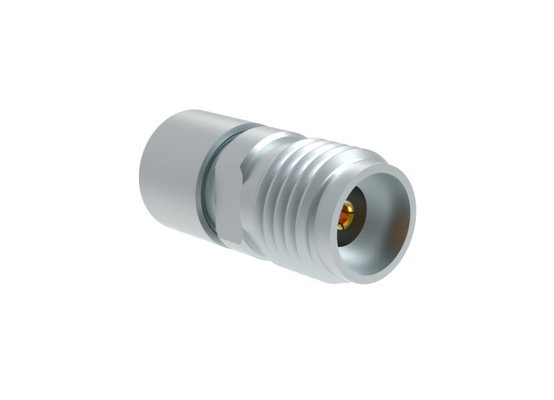

K(2.92mm) Female RF Load 0.5 Watts DC-40 GHz VSWR≤1.3 Chip Resistor
Xi'an Elite Electronics' RF load/terminal (also known as virtual load) is only a part of a wide selection of coaxial terminal products for radios, antennas and other types of RF components, used for typical applications, production, laboratory testing and measurement, etc. Our coaxial RF load terminals are designed and manufactured with RF load.
The low-power matched RF load designed and produced by Xi'an Elite Electronics has an impedance of 50 Ω, including SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm and other male and female interfaces, which can meet different needs of users.
| Model No. | K-KR-0.5W |
| Power | 0.5W |
| Frequency Range | DC-40GHz |
| VSWR | ≤1.3 |
| Note | Chip Resistor |
Details of K(2.92mm) Female RF Load 0.5 Watts DC-40 GHz VSWR≤1.3 Chip Resistor
Xi'an Elite Electronics has a is 0.5W, and the maximum VSWR is 1.3:1. Other male 2.92mm RF load specifications for this component can be found by contacting us. 2.92mm female RF load impedance of 50 ohms and a rated maximum frequency of 40 GHz. The maximum input power of this virtual load/RF terminal
Advantage :
* High Reliable
* Reliable Mechanical Performance
* Wide Frequency Range from DC to 18GHz
Applications :
- General Purpose Test
- Communication
- Precision Test and Measurement
◆ Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ Widely used for In-building Solutions
Key Features:
Polarity Standard
Interface N (Male)
Impedance 50Ω
Body Shape Straight
50 ohms nominal impedance is standard
Performance Features:
Frequency Range: DC~18GHz
VSWR DC~18GHz: ≤1.2
Average Power ≤2W
Durability 500 Cycles
Operating Temperature -55℃~+125℃
Material Specifications:
Housing Type Brass, Stainless Steel
Passivated
Center Contact Beryllium Copper
Gold Plated
Shipping Service:
The shipment will be delivered via major global expresses, such as DHL, UPS, FedEx etc. Currently, it will be sent out from Xi'an, China.
