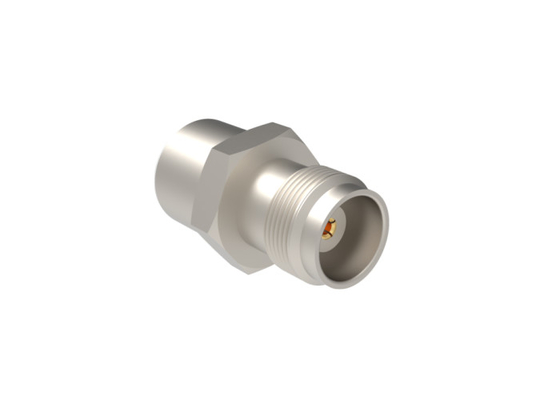

Tri-Metal Plated Brass 1 Watt RF Load Up To 18 GHz With TNC Female Input
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

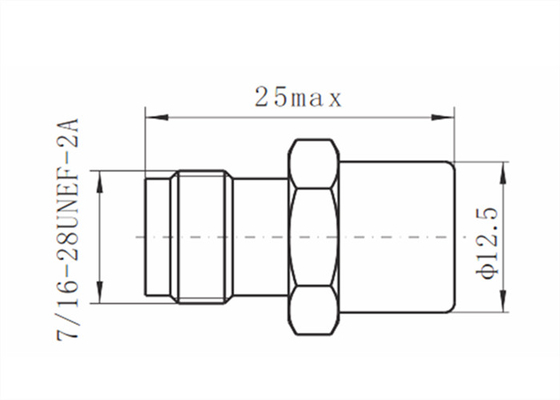

| Impedence: | 50 Ohm | Length: | 25mm Max |
|---|---|---|---|
| Diameter: | φ12.5 | Frequency Range: | DC-18GHz |
| Housing: | Brass | Note: | Cylindrical Resistor |
| Highlight: | TNC Female RF Load,Tri-Metal Plated Brass RF Load,18 GHz RF Termination Connector |
||
1 Watt RF Load Up to 18 GHz With TNC Female Input Tri-Metal Plated Brass
Xi'an Elite Electronic 1 Watts RF load (also known as termination or dummy load) has a TNC connector that is female. This 1watts TNC female load / termination is rated for a maximum frequency of 18 GHz. Our TNC female termination load is a rf load termination with a 50 Ohm impedance.This TNC load / coax terminator is manufactured with no chain and brass body. The 50 Ohm TNC coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.25:1.
The low-power matched RF load designed and produced by Xi'an Elite Electronics has an impedance of 50 Ω, including SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm and other male and female interfaces, which can meet different needs of users.
| Model No. | TNC-KR-1W |
| Power | 1W |
| Frequency Range | DC-18GHz |
| VSWR | ≤1.25 |
| Note | Cylindrical Resistor |
Details of 1 Watt RF Load Up to 18 GHz With TNC Female Input Tri-Metal Plated Brass
Advantage :
* High Reliable
* Reliable Mechanical Performance
* Wide Frequency Range from DC to 18GHz
Applications :
- General Purpose Test
- Communication
- Precision Test and Measurement
◆ Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ Widely used for In-building Solutions
Key Features:
| Termination Type | RF Load |
| Connector Series | TNC |
| Connector Gender | Female |
| Minimum Frequency | DC |
| Maximum Frequency | 18 GHz |
| Impedance | 50 Ohm |
| Maximum VSWR | 1.25:1 |
| Maximum Power | 1 Watt |
Material Specifications:
Housing Type Brass, Stainless Steel
Passivated
Center Contact Beryllium Copper
Gold Plated
Since the matched load needs to be customized according to your needs, please provide the following requirements when you send us inquiry:
*The frequency range you need.
*Power requirement.
*Connector type
*Your special requirements if you have (VSWR, temperature, size, etc.)
