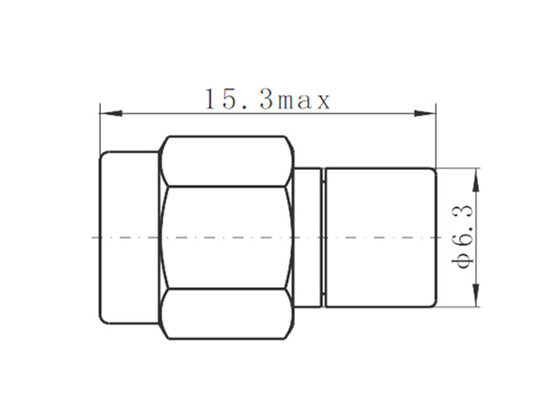

| Impedence: | 50Ohm | Length: | 15.3mm Max |
|---|---|---|---|
| Diameter: | φ6.3 | Frequency Range: | DC-18GHz |
| Housing: | Brass | Note: | Chip Resistor |
| High Light: | Male RF Termination Load,0.5W RF Termination Load,50 Ohm RF Dummy Load |
||

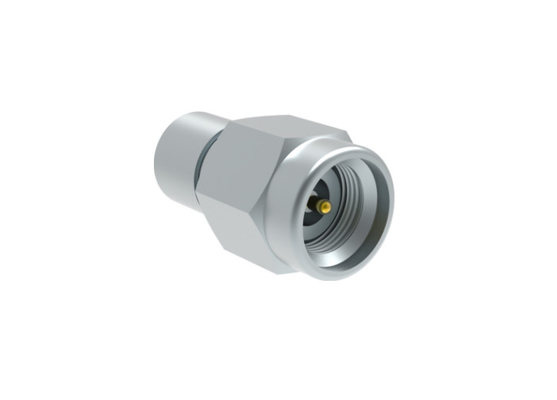

RF Load 0.5 Watts DC-40GHz K(2.92mm) Male VSWR ≤ 1.3 Chip Resistor
RF load/termination (also known as a dummy load) from Xi'an Elite Electronic is just part of a wide selection of coaxial terminator products supplied for radio, antenna and other types of RF components for typical use, production, laboratory test and measurement, etc. Our coaxial radio requency load termination is manufactured in a RF load design.
| Model No. | K-JR-0.5W |
| Power | 0.5W |
| Frequency Range | DC-40GHz |
| VSWR | ≤1.3 |
| Note | Chip Resistor |
Details of RF Load 0.5 Watts DC-40GHz K(2.92mm) Male VSWR ≤1.3 Chip Resistor
2.92mm female RF load from Xi'an Elite Electronic is 50Ohm impedance and is rated for a maximum frequency of 40GHz. This Dummy load/RF termination has a maximum input power of 0.5 Watt and a maximum VSWR of 1.3:1. Additional male 2.92mm RF load specs for this component can be found by contact us.
Advantage :
* High Reliable
* Reliable Mechanical Performance
* Wide Frequency Range from DC to 18GHz
Applications :
◆ Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ Widely used for In-building Solutions
Shipping Service:
The shipment will be delivered via major global expresses, such as DHL, UPS, FedEx etc. Currently, it will be sent out from Xi'an, China.
