N Male Plug Termination Load 1watt Low Power DC to 18GHz 1.2 VSWR

Large Image : N Male Plug Termination Load 1watt Low Power DC to 18GHz 1.2 VSWR Get Best Price

Product Details:

Place of Origin:	Shaanxi, China
Brand Name:	ELT
Certification:	CE ROHS
Model Number:	N-JR-1W

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000000 Pieces Per Month

Contact Now

Detailed Product Description

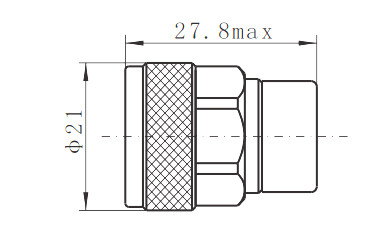

Impedence:	50Ohm	Length:	27.8mm Max
Diameter:	φ21	Frequency Range:	DC-18GHz
Housing:	Brass	Note:	Cylindrical Resistor
High Light:	N Male Plug Termination Load , 1.2 VSWR RF Load Termination , Cylindrical Resistor RF Dummy Load

N Male (Plug) Termination (Load) 1watts Low Power DC to 18GHz 1.2 VSWR

The terminal or load provided by Xi'an Elite Electronics matches a characteristic impedance of 50Ohms. The matched load provides a terminal designed to absorb all incident power with minimal reflection, effectively terminating the characteristic impedance of the line or port. The terminal is used for various measuring systems; Any port of the multi port microwave equipment not involved in the measurement shall terminate its characteristic impedance to ensure accurate measurement. Terminals are also used for devices such as directional couplers and isolators.

The low-power matched RF load designed and produced by Xi'an Elite Electronics has an impedance of 50Ω, including SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm and other male and female interfaces, which can meet different needs of users.
