Product Details:
Payment & Shipping Terms:
|

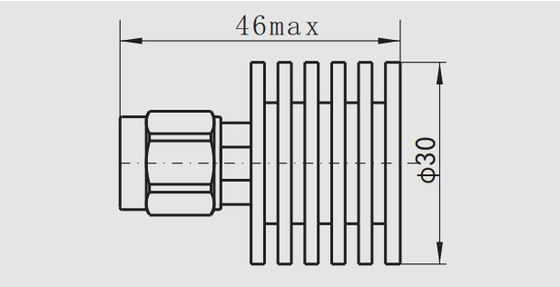

| Impedence: | 50 Ohm | Length: | 46mm Max |
|---|---|---|---|
| Diameter: | φ30 | Frequency Range: | DC-18GHz |
| Housing: | Brass , Gold-plated | Note: | Cylindrical Resistor |
| High Light: | 10 Watt Male RF Load Termination,RF Coaxial Load Termination,1.181″ RF Coaxial Termination |
||
TNCA Male 10 Watt RF Load 46mm / 1.181″ (L) TNCA RF Coaxial Termination
The terminal or load provided by Xi'an Elite Electronics matches a characteristic impedance of 50 ohms. The matched load provides a terminal designed to absorb all incident power with minimal reflection, effectively terminating the characteristic impedance of the line or port. The terminal is used for various measuring systems; Any port of the multi port microwave equipment not involved in the measurement shall terminate its characteristic impedance to ensure accurate measurement. Terminals are also used for devices such as directional couplers and isolators.
| Model No. | TNCA-JR-10W |
| Power | 10W |
| Frequency Range | DC-18GHz |
| VSWR | ≤1.4 |
| Note | Cylindrical Resistor |
Details of TNCA Male 10 Watt RF Load 46mm / 1.181″ (L) TNCA RF Coaxial Termination
Advantage :
* High Reliable
* Good Mechanical Performance
* Wide Frequency Range from DC to 18GHz
Applications :
◆ Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ Widely used for In-building Solutions
Shipping Service:
The shipment will be delivered via major global expresses, such as DHL, UPS, FedEx etc. Currently, it will be sent out from Xi'an, China.
