| Impedence: | 50 Ohm | Length: | 15.3mm Max |
|---|---|---|---|
| Diameter: | φ6.3 | Frequency Range: | DC-18GHz |
| Housing: | Brass , Gold-plated | Note: | Cylindrical Resistor |
| High Light: | SSMA Male RF Coaxial Termination,RF Load 15.3mm,Resistor RF Coaxial Termination |
||

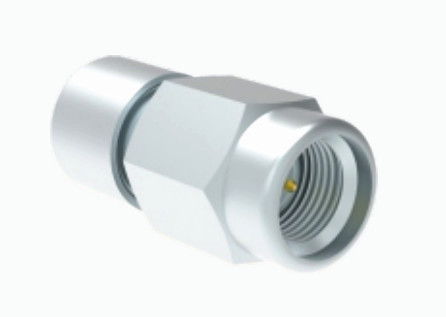

1 Watt RF Load, 15.3mm / .602″ (L) SSMA Male RF Coaxial Termination
Terminations, or loads, offered by Xi‘an Elite Electronic are matched to 50 ohms characteristic impedance. Matched loads provide a termination designed to absorb all the incident power with very little reflection, effectively terminating the line or port in its characteristic impedance. Terminations are used in a wide variety of measurement systems; any port of a multi-port microwave device that is not involved in the measurement should be terminated in its characteristic impedance in order to ensure an accurate measurement. Terminations are also used in devices such as directional couplers and isolators.
| Model No. | SSMA-JR1-1W |
| Power | 1W |
| Frequency Range | DC-18GHz |
| VSWR | ≤1.25 |
| Note | Chip Resistor |

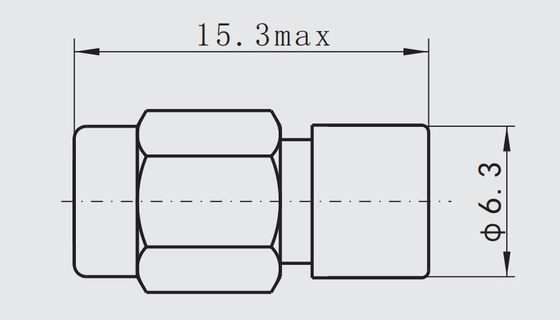

Details of 1 Watt RF Load, 15.3mm / .602″ (L) SSMA Male RF Coaxial Termination
Advantage :
* High Reliable
* Good Mechanical Performance
* Wide Frequency Range from DC to 18GHz
Applications :
◆ Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ Widely used for In-building Solutions
