1W DC-18 GHz SSMA-Male RF Load Termination Low PIM Power

1W DC-18 GHz SSMA-Male RF Load Termination Low PIM Power
1W DC-18 GHz SSMA-Male RF Load Termination Low PIM Power 1W DC-18 GHz SSMA-Male RF Load Termination Low PIM Power

Large Image :  1W DC-18 GHz SSMA-Male RF Load Termination Low PIM Power Get Best Price

Product Details:
Place of Origin: Shaanxi, China
Brand Name: ELT
Certification: CE ROHS
Model Number: SSMA-50JR1-1W
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000000 Pieces Per Month
Detailed Product Description

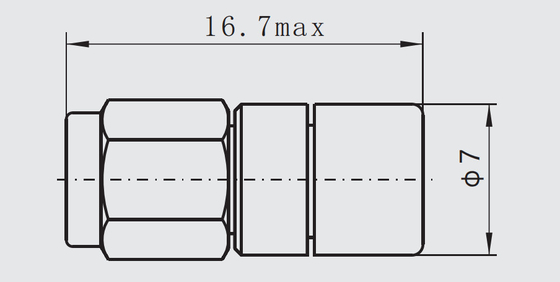

Impedence: 50 Ohm Length: 16.7mm Max
Diameter: φ7 Frequency Range: DC-18GHz
Housing: Brass , Gold-plated Note: Cylindrical Resistor
High Light:

SSMA Male RF Load

,

Low PIM Power RF Load Termination

,

DC-18GHz RF Dummy Load

1W DC-18 GHz SSMA-Male Termination Low VSWR Power RF Dummy Load



Terminations, or loads, offered by Xi‘an Elite Electronic are matched to 50 ohms characteristic impedance. Matched loads provide a termination designed to absorb all the incident power with very little reflection, effectively terminating the line or port in its characteristic impedance. Terminations are used in a wide variety of measurement systems; any port of a multi-port microwave device that is not involved in the measurement should be terminated in its characteristic impedance in order to ensure an accurate measurement. Terminations are also used in devices such as directional couplers and isolators.



The low-power matched RF load designed and produced byElite Electronic has an impedance of 50Ω, including male and female interface of SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm, etc., which can meet the different needs of users.




Model No. SSMA-JR-10W
Power  10W
Frequency Range  DC-18GHz
VSWR  ≤1.3
Note  Cylindrical Resistor



1W DC-18 GHz SSMA-Male RF Load Termination Low PIM Power 0



Details of 1W DC-18 GHz SSMA-Male Termination Low PIM RF Power Load




Advantage :



* High Reliable


* Good Mechanical Performance


* Wide Frequency Range from DC to 18GHz





Applications :



  • General Purpose Test
  • Communication
  • Precision Test and Measurement

◆   Wide Frequency Band



◆   2G/3G/4G/LTE Coverage



◆   Low VSWR



◆   Widely used for In-building Solutions





Key Features:

Polarity                Standard

Interface              SSMA (Male)

Impedance           50Ω

Body Shape         Straight

50 ohms nominal impedance is standard

Performance Features:

Frequency Range:           DC~18GHz

VSWR                              DC~18GHz: ≤1.2

Average Power ≤2W

Durability                          500 Cycles

Operating Temperature    -55℃~+125℃





Shipping Service:



The shipment will be delivered via major global expresses, such as DHL, UPS, FedEx etc. Currently, it will be sent out from Xi'an, China.
