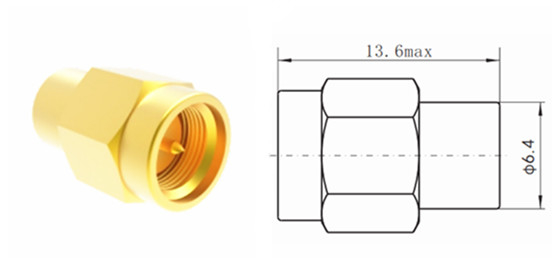

50Ohm SMA Male RF Matched Load/Termination DC-18GHz 1 Watt Power

Large Image : 50Ohm SMA Male RF Matched Load/Termination DC-18GHz 1 Watt Power Get Best Price

Product Details:

Place of Origin:	Shaanxi, China
Brand Name:	ELT
Certification:	CE ROHS
Model Number:	SMA-JR1-1W

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000000 Pieces Per Month

Contact Now

Detailed Product Description

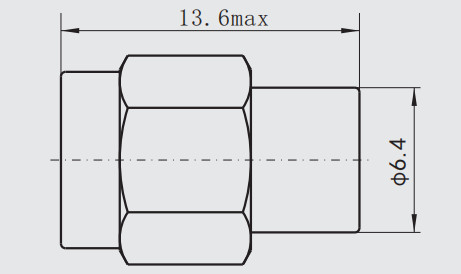

Impedence:	50Ohm	Size:	13.6 Max
VSWR:	≤1.2	Frequency Range:	DC-18GHz
Power (W):	1W	Note:	Cylindrical Resistor
Highlight:	50Ohm RF Matched Load , Matched RF Load Termination , SMA Male RF Load Termination

50Ohm DC-18Ghz SMA Male 1 Watt Power RF Matched Load/Termination

The low-power matched RF load designed and produced byElite Electronic has an impedance of 50Ω, including male and female interface of SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm, etc., which can meet the different needs of users.
